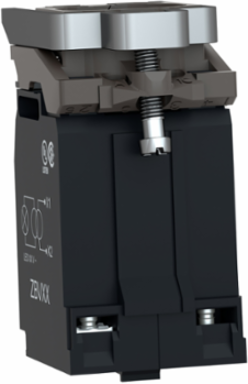

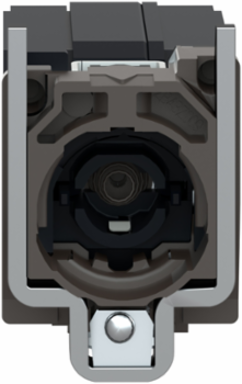

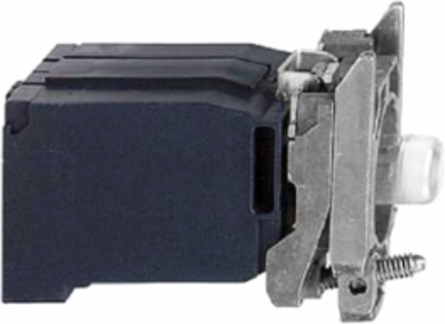

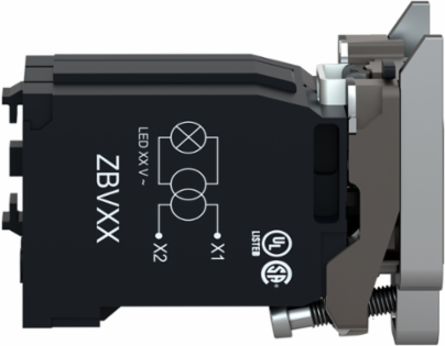

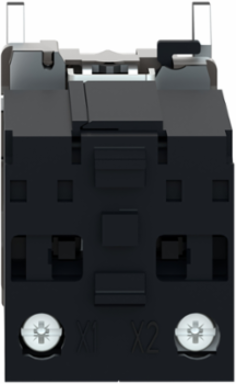

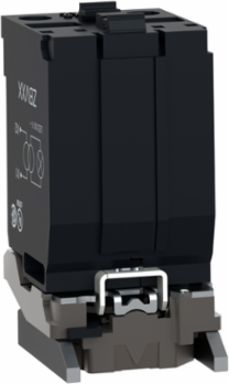

Schneider Electric ZB4BV8 Harmony XB4 Light Block Assembly, 440-480V AC, BA9s Bulb, IP20 Protection
- MPN: ZB4BV8
- PPN: SCH-ZB4BV8
CAD
$104.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB4, light block with body/fixing collar operates with BA9s base Integral LED. It has a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Physical Attributes

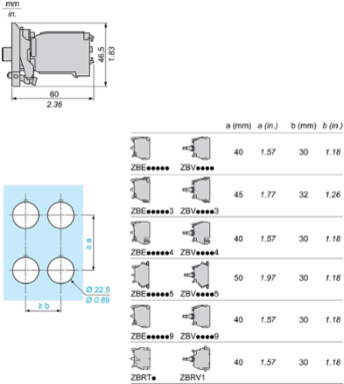

- Cad Overall Depth
- 60 mm
- Cad Overall Width
- 30 mm
Cad Overall Height47 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Connections Terminals 8 Connections Terminals
- screw clamp terminals
- [Us] Rated Supply Voltage
- 440...480 V, 440...480 V AC 50/60 Hz
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0168424757, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0238592621, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 29 kg CO2 eq., 29.3450704225
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308026EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 20 %
- Bulb Base
- BA 9s
- Device Short Name
- ZB4
- Fixing Collar Material
- zamak
- Light Source
- incandescent
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Returnability
- Yes
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Software Version
- v5.9.4
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP2308026EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Connections - Terminals
- screw clamp terminals, = 1 x 0.22 mm² without cable end
- Package Weight(Lbs)
- 126.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeP4, M9
Supply Voltage440...480 V
Certificate AgencyDNV, UL Listed, LROS (Lloyds register of shipping), BV, CSA
Terminals Description Iso N°1(X1-X2)PL, (X1-X2)PL
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.1538409709
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 0.9665470874
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content44 %
Compatibility CodeZB4
Electrical Shock Protection Classclass I conforming to IEC 60536
Light Block Supplyvia integral transformer 1.2 VA 6 V
Mounting Of Blockfront mounting
Product Or Component Typecomplete body/light block assembly
Range Of ProductHarmony XB4
Sale Per Indivisible Quantity1
Signalling Typesteady
Sustainable PackagingYes
Total Lifecycle Carbon Footprint31 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXB4 plain lens modular green pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh63.072
Recyclability Potential In %85
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8531809051
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 30.5061602187
- Environmental Disclosure
- ENVPEP2308026EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2308026EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level20 %
Mercury FreeYes
Circularity ProfileENVEOLI2308026EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- complete body/light block assembly
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000204
ETIM 9EC000204
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic sub-assemblies
