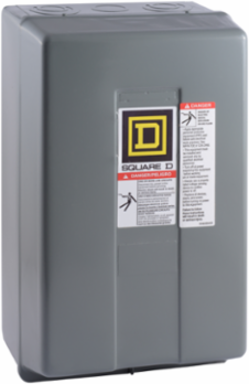

Square D 8903LG04V02 Electrically Held Lighting Contactor 30A 4 Pole 600V NEMA 1

MPN: 8903LG04V02
UPC: 785901022138
PPN: SCH-8903LG04V02
UNSPSC: 39121529

$1231.06

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for robustness and reliability, this electrically held lighting contactor from Schneider Electric accommodates demanding automation and control applications. With a capacity of 30A and designed with four poles for up to 600V, it ensures efficient management of your lighting systems. The NEMA 1 enclosure provides adequate protection in indoor environments, making this contactor a sound choice for various industrial and commercial settings. Its dependable operation and sturdy construction underline its significance in enhancing operational efficiency.

Features

Electrically and mechanically held
Rugged design
Field convertible
Silent operation
This product is TAA compliant.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Weight	5551 g

Compliance	TAA Compliant
Depth	153 mm

Complementary Attributes

Control Circuit	separate control circuit
Uc Control Circuit Voltage	110 V AC 50 Hz120 V AC 60 Hz

Line Rated Current	20-20 A tungsten30-30 A fluorescent

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL Listed, CSA
Carbon Footprint Of The Distribution Phase A4	4.608328862341116, 5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.7543758637630866, 0.8 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	433 kg CO2 eq., 432.9107817063548
Local Publishable Date	2025-11-19
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1926
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Control Type	no control units
Energy Efficiency Optimized	False
Local Signalling	no indicator
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	8903L
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	488 kg CO2 eq.
Data Source	extrapolated product
Width Nominal	198 mm
Customs Code	8536490065
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Hold In Power Consumption In Va	30-30 VA 60 Hz, 30-30 VA 50 Hz
Carbon Footprint Of The End Of Life Phase C1 To C4	8 kg CO2 eq., 7.823892531947042
Carbon Footprint Of The Manufacturing Phase A1 To A3	42 kg CO2 eq., 42.2627215220495
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Electrical Connection	screw-clamp terminals
Inrush Power In Va	150-150 VA 60 Hz140-140 VA 50 Hz
Number Of Poles	4P 4 NC
Product Or Component Type	Electrically Held Lighting Contactor
Returnability	No
Sustainable Packaging	Yes
Database Version	2024-01
Height Nominal	322 mm
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free plastic parts product
Functional Unit Description	Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional Unit Unit	unit
Recyclability Potential In %	90

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407018EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1407018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Halogene Performance	Halogen free plastic parts product
Toxic Heavy Metal Free	Yes
Carbon Footprint	488.3601004864555
Eu Rohs Directive	Compliant
Nema Degree Of Protection	NEMA 1 painted sheet steel surface
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-10-15
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
