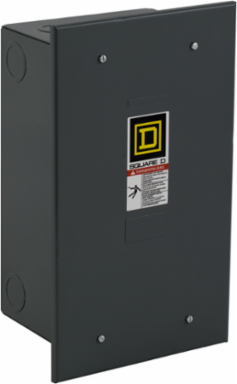

Schneider Electric 8903LF80V02 Contactor, Type L, multipole lighting, electrically held, 30A, 8 pole, 600 V, 110/120 VAC 50/60 Hz coil, NEMA 1 flush

Contactor, Type L, multipole lighting, electrically held, 30A, 8 pole, 600 V, 110/120 VAC 50/60 Hz coil, NEMA 1 flush
  • MPN: 8903LF80V02
  • UPC: 785901022121
  • PPN: SCH-8903LF80V02

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Looking to buy a large quantity?

    To view product inventory

    CAD$1570.60/ EA

    Description

    Contactor, Type L, multipole lighting, electrically held, 30A, 8 pole, 600 V, 110/120 VAC 50/60 Hz coil, NEMA 1 flush

    Specifications

    Specifications

    Range Of Product
    8903L
    Product Or Component Type
    Electrically Held Lighting Contactor
    Control Circuitseparate control circuit

    Contractual warranty

    Warranty
    18 months

    Complementary

    Local Signalling
    no indicator
    Control Type
    no control units
    Hold-In Power Consumption In Va
    35-35 VA 60 Hz || 35-35 VA 50 Hz
    Width
    227 mm
    [In] Rated Current
    20-20 A tungsten || 30-30 A fluorescent
    Poles Description
    8P 8 NO
    Height386 mm
    [Uc] Control Circuit Voltage110 V AC 50 Hz || 120 V AC 60 Hz
    Electrical Connectionscrew-clamp terminals
    Depth138 mm
    Inrush Power In Va180-180 VA 60 Hz || 170-170 VA 50 Hz

    Offer Sustainability

    China Rohs Regulation
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Mercury Free
    Yes
    Sustainable Offer Status
    Green Premium product
    Toxic Heavy Metal Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Reach Free Of Svhc
    Yes
    Rohs Exemption InformationYes
    Environmental DisclosureENVPEP1407018EN
    Pvc FreeYes
    Eu Rohs DirectiveCompliant
    Halogen Content PerformanceHalogen free plastic parts product

    Environment

    Product Certifications
    UL listed || CSA
    Nema Degree Of ProtectionNEMA 1 painted sheet steel flush
