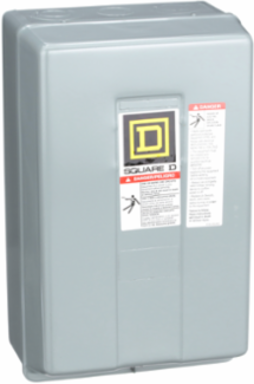

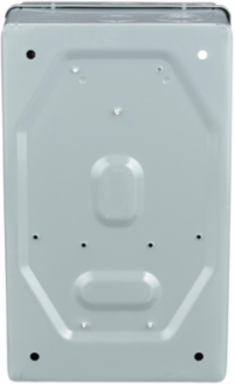

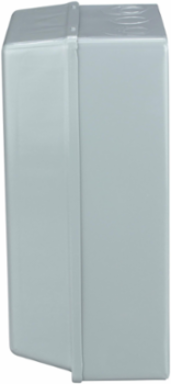

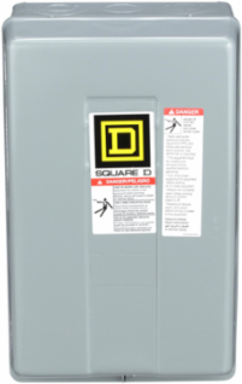

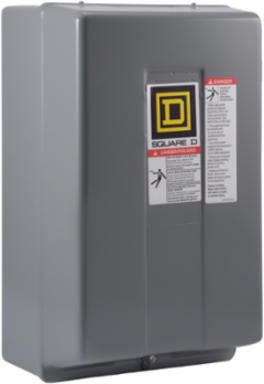

Square D 8903LXG60V02 Mechanically Held Lighting Contactor 30A 6 Pole 600V NEMA 1
- MPN: 8903LXG60V02
- UPC: 785901057383
- PPN: SCH-8903LXG60V02
- UNSPSC: 39121529
CAD
$2185.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 6 pole device has 6 NO contacts. Supplied with two operating coils. One is for latching the contactor and the other is to unlatch the contactor. Both coils are 110/120 VAC 50/60 Hz rated. Other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coils and contacts are easily replaced. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
Features
- Multi-pole lighting contactors are available in wide variety of enclosures suitable for lighting control
- Field-convertible contacts with N.O. and N.C. indicators
- Thousands of possible contact configurations
- Available to be electrical or mechanically held
- This product is TAA compliant.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 153 mm |
| Compliance | TAA Compliant |
|---|
Complementary Attributes
| Control Circuit | separate control circuit |
|---|---|
| Uc Control Circuit Voltage | 110 V AC 50 Hz120 V AC 60 Hz |
| Line Rated Current | 20-20 A tungsten30-30 A fluorescent |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL Listed, CSA |
| Local Publishable Date | 2026-03-25 |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1926 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Additional Included Device | none |
| Electrical Connection | screw-clamp terminals |
| Inrush Power In Va | 150-150 VA 60 Hz140-140 VA 50 Hz25-25 VA 50/60 Hz |
| Number Of Poles | 6P 6 NO |
| Product Or Component Type | Mechanically Held Lighting Contactor |
| Returnability | Yes |
| Height Nominal | 322 mm |
| Nbr. Of Units In Pkg. | 1 |
| Hold In Power Consumption In Va | 30-30 VA |
| Warranty In Months | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Type | no control units |
| Energy Efficiency Optimized | False |
| Local Signalling | no indicator |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | 8903LX |
| Sustainable Packaging | Yes |
| Width Nominal | 198 mm |
| Customs Code | 8536490065 |
| Halogen Free Status | Halogen free plastic parts product |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Nema Degree Of Protection | NEMA 1 painted sheet steel surface |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP1407018EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1407018EN |
General Attributes
| Product Or Component Type | Mechanically Held Lighting Contactor |
|---|
| Range Of Product | 8903LX |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
