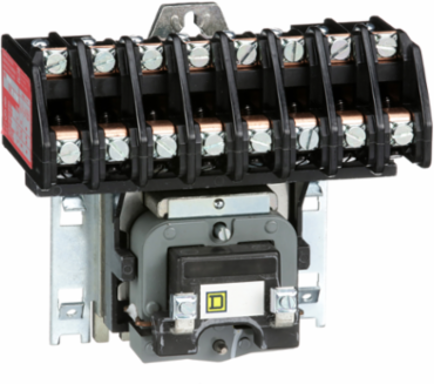

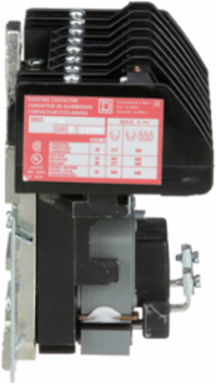

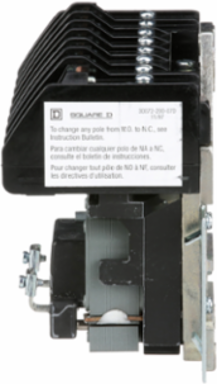

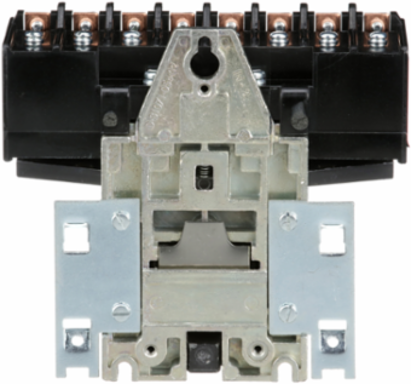

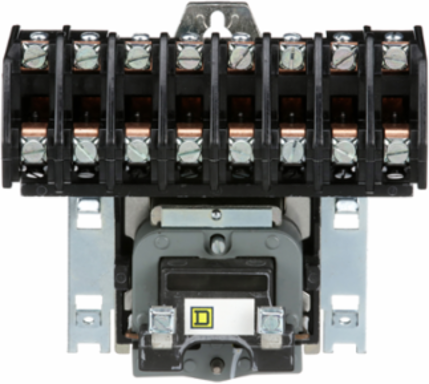

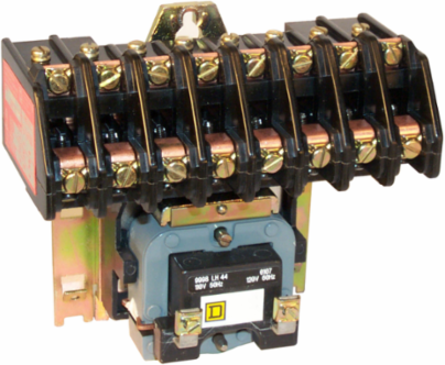

Square D 8903LO80V06 30A 8-Pole Electrically Held Lighting Contactor, 600V AC

MPN: 8903LO80V06
UPC: 785901182863
PPN: SCH-8903LO80V06
UNSPSC: 39121529

$2007.26

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric 8903LO80V06 is a robust 30A 8-Pole electrically held lighting contactor designed to handle lighting loads efficiently in a variety of applications. With a voltage rating of 600V AC, this contactor ensures reliable control of lighting circuits, contributing to safe and effective automation. Engineered for durability and performance, it fits seamlessly into the automation and control landscape, catering to the needs of modern electrical systems while providing optimal control in commercial and industrial settings. Its design supports easy integration and operation within a wide range of lighting applications, making it a vital component for efficient lighting management.

Features

Electrically and mechanically held
Rugged design
Field convertible
Silent operation
This product is TAA compliant.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Weight	1426 g

Compliance	TAA Compliant
Depth	79 mm

Complementary Attributes

Control Circuit	separate control circuit
Uc Control Circuit Voltage	440 V AC 50 Hz480 V AC 60 Hz

Line Rated Current	20-20 A tungsten30-30 A fluorescent

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL Listed, CSA
Carbon Footprint Of The Distribution Phase A4	1.1838365983964025, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.19379210623782409, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	571 kg CO2 eq., 571.0889762940509
Local Publishable Date	2025-11-19
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1926
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Control Type	no control units
Energy Efficiency Optimized	False
Local Signalling	no indicator
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	8903L
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	585 kg CO2 eq.
Data Source	extrapolated product
Width Nominal	143 mm
Customs Code	8536490065
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Hold In Power Consumption In Va	35-35 VA 60 Hz, 35-35 VA 50 Hz
Carbon Footprint Of The End Of Life Phase C1 To C4	2 kg CO2 eq., 2.0098848406695153
Carbon Footprint Of The Manufacturing Phase A1 To A3	11 kg CO2 eq., 10.856898016653322
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Electrical Connection	screw-clamp terminals
Inrush Power In Va	180-180 VA 60 Hz170-170 VA 50 Hz
Number Of Poles	8P 8 NO
Product Or Component Type	Electrically Held Lighting Contactor
Returnability	No
Sustainable Packaging	No
Database Version	2024-01
Height Nominal	127 mm
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free plastic parts product
Functional Unit Description	Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional Unit Unit	unit
Recyclability Potential In %	90

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407018EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1407018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Halogene Performance	Halogen free plastic parts product
Toxic Heavy Metal Free	Yes
Carbon Footprint	585.333387856008
Eu Rohs Directive	Compliant
Nema Degree Of Protection	not rated (open device)
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-10-15
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
