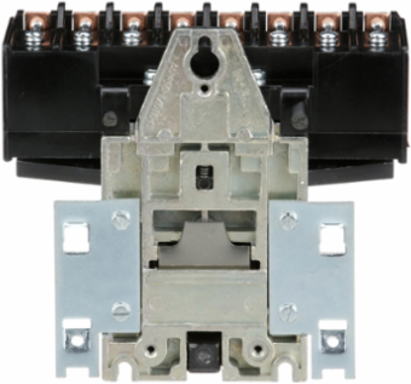

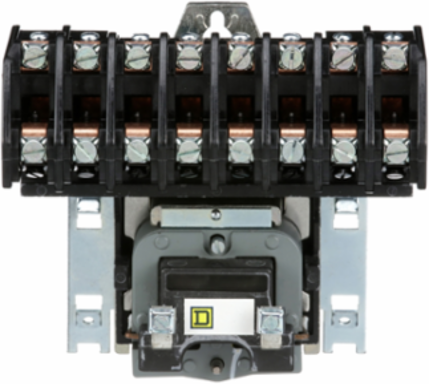

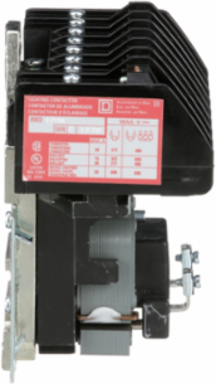

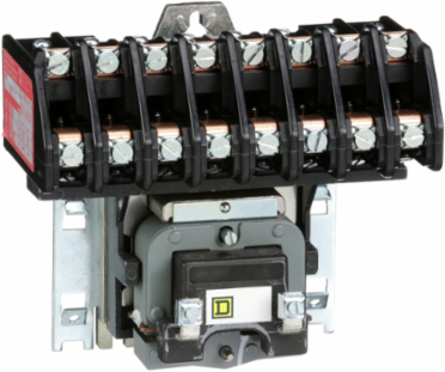

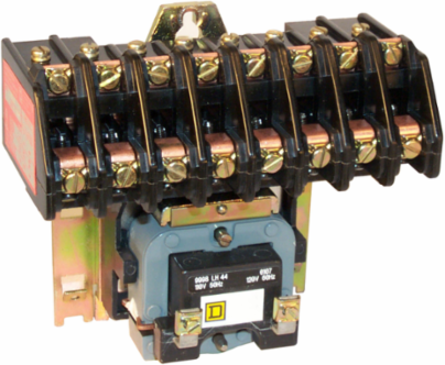

Square D 8903LO44V02 Contactor, Type L, multipole lighting, electrically held, 30A, 8 pole, 600 V, 110/120 VAC 50/60 Hz coil, open style [TAA]
- MPN: 8903LO44V02
- PPN: SCH-8903LO44V02
CAD
$2374.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Contacts can switch up to 30A fluorescent and 20A tungsten lighting loads. The contacts are field convertible from NO to NC. This 8 pole device has 8 NO contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. This unit is supplied with 110/120VAC 50/60Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Coil and contacts are easily replaced. Contactor is an open style, but a variety of other enclosure types are available. A wide variety of accessories are available for Type L lighting contactors. 8903L lighting contactors are UL Listed and CSA Certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Depth
- 79 mm
ComplianceTAA Compliant
Complementary Attributes
- Control Circuit
- separate control circuit
Line Rated Current20-20 A tungsten30-30 A fluorescent
Important Information Attributes
- Certificate Agency
- UL Listed, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 1.7325855405703312, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.28362140653459944, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 433 kg CO2 eq., 432.9107817063548
- Local Publishable Date
- 2025-11-19
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1926
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Control Circuit
- separate control circuit
- Electrical Connection
- screw-clamp terminals
- Inrush Power In Va
- 180-180 VA 60 Hz170-170 VA 50 Hz
- Number Of Poles
- 8P 4 NO + 4 NC
- Product Or Component Type
- Electrically Held Lighting Contactor
- Returnability
- No
- Sustainable Packaging
- No
- Pep Code
- ENVPEP1407018EN
- Pep Verification Date
- 2025-10-15
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 127 mm
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz120 V AC 60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Hold-in Power Consumption In Va35-35 VA 50 Hz, 35-35 VA 60 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 2.9415355276839263
Carbon Footprint Of The Manufacturing Phase [A1 To A3]16 kg CO2 eq., 15.889443310487714
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Product Kit IdentifierN
Control Typeno control units
Energy Efficiency OptimizedFalse
Local Signallingno indicator
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of Product8903L
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint454 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %90
Width Nominal143 mm
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)2.087 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1407018EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1407018EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Halogene PerformanceHalogen free plastic parts product
Toxic Heavy Metal FreeYes
Carbon Footprint453.75796749163135
Eu Rohs DirectiveCompliant
Nema Degree Of Protectionnot rated (open device)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-10-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- Electrically Held Lighting Contactor
Range Of Product8903L
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
