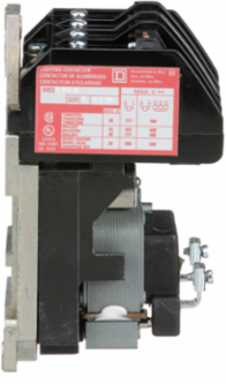

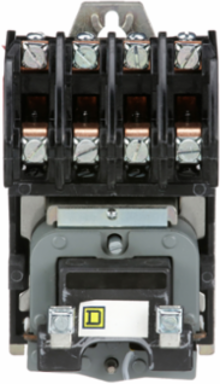

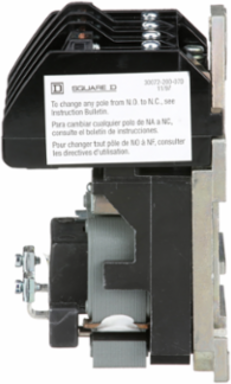

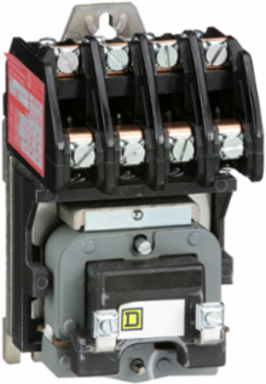

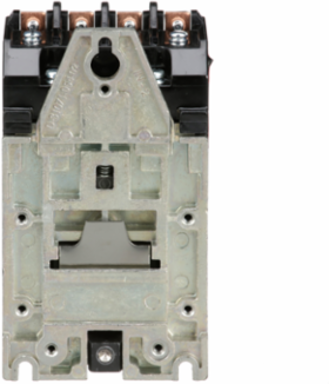

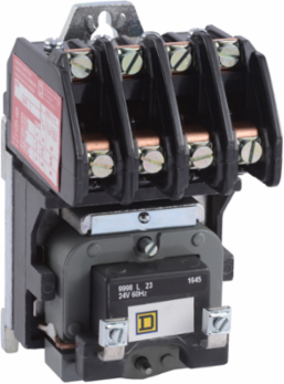

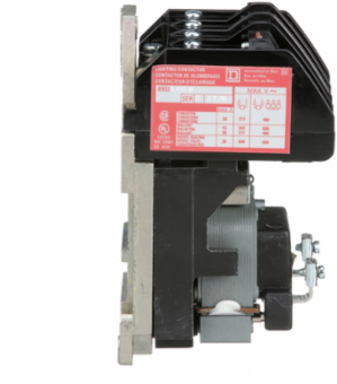

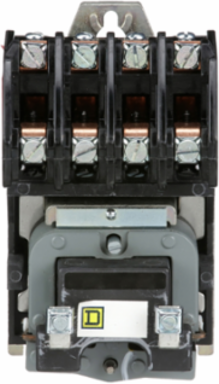

Square D 8903LO40V08 Electrically Held Lighting Contactor, 30A, 4 Pole, 208 VAC 60 Hz
- MPN: 8903LO40V08
- UPC: 785901556398
- PPN: SCH-8903LO40V08
- UNSPSC: 39121529
CAD
$995.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Designed for reliable operation in electrical systems, this electrically held lighting contactor provides robust control for lighting applications. With a 30A capacity and a four-pole configuration, it effectively manages loads at 208 VAC and 60 Hz, making it suitable for a variety of industrial and commercial environments. Schneider Electric's expertise in automation and control is evident in this contactor, which ensures efficient and seamless lighting operations while contributing to overall system reliability. Whether for new installations or system upgrades, this lighting contactor exemplifies durability and performance.
Features
- Electrically and mechanically held
- Rugged design
- Field convertible
- Silent operation
- This product is TAA compliant.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Weight | 1156 g |
| Compliance | TAA Compliant |
|---|---|
| Depth | 79 mm |
Complementary Attributes
| Control Circuit | separate control circuit |
|---|---|
| Uc Control Circuit Voltage | 208 V AC 60 Hz |
| Line Rated Current | 20-20 A tungsten30-30 A fluorescent |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL Listed, CSA |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 2 kg CO2 eq., 1.6293316099677138 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 9 kg CO2 eq., 8.801244114481934 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Electrical Connection | screw-clamp terminals |
| Local Signalling | no indicator |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | 8903L |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 444 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 73 mm |
| Customs Code | 8536490065 |
| Halogen Free Status | Halogen free plastic parts product |
| Functional Unit Description | Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 90 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 0.9596880138472941, 1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.1570993511998069, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 433 kg CO2 eq., 432.9107817063548 |
| Local Publishable Date | 2025-11-19 |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1926 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Control Type | no control units |
| Inrush Power In Va | 150-150 VA 60 Hz |
| Number Of Poles | 4P 4 NO |
| Product Or Component Type | Electrically Held Lighting Contactor |
| Returnability | No |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Height Nominal | 127 mm |
| Nbr. Of Units In Pkg. | 1 |
| Hold In Power Consumption In Va | 30-30 VA 60 Hz |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407018EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1407018EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 444.4581447958515 |
| Eu Rohs Directive | Compliant |
| Nema Degree Of Protection | not rated (open device) |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-10-15 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | Electrically Held Lighting Contactor |
|---|
| Range Of Product | 8903L |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
