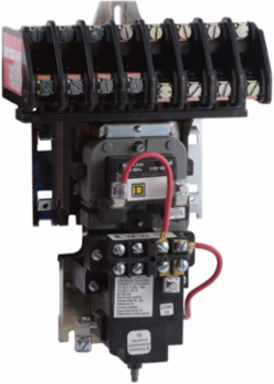

Square D 8903LXO80V02R6 Mechanically Held Lighting Contactor 30A, 8 Pole, 600V, 110/120VAC
- MPN: 8903LXO80V02R6
- UPC: 785901023494
- PPN: SCH-8903LXO80V02R6
CAD
$3444.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This lighting contactor from Schneider Electric is designed to provide reliable control of lighting circuits in various applications. Featuring eight poles and rated for 30 amps at 600 volts, it is suitable for handling substantial electrical loads while ensuring efficient operation. The integrated 110/120V AC coil allows for straightforward integration into existing systems, making it an excellent choice for both new installations and upgrades. Ideal for a range of automation and control applications, this contactor is essential for anyone looking to enhance their lighting management capabilities.
Documentation & Downloads
Specifications
Additional
- Product Or Component Type
- Mechanically Held Lighting Contactor
- Rated Current
- 20 A tungsten, 30 A fluorescent
- Control Circuit Voltage
- 110 V AC 50 Hz, 120 V AC 60 Hz
- Electrical Connection
- Screw-clamp terminals
- Width
- 143 mm (5.63 in)
- Nema Degree Of Protection
- Not rated (open device)
- RoHS Compliance
- Compliant
- PVC Free
- Yes
- Warranty
- 18 months
- Control Type
- No control units
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1407018EN
- Range Of Product
- 8903LX
Poles Description8P 8 NO
Voltage600 V
Inrush Power180 VA 60 Hz, 170 VA 50 Hz, 25 VA 50/60 Hz
Height224 mm (8.82 in)
Depth83 mm (3.27 in)
Product CertificationsUL listed, CSA
Reach ComplianceFree of SVHC
Halogen ContentHalogen free plastic parts
Additional Device2P relay (1 NO + 1 NC)
Local SignallingNo indicator
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China RoHS RegulationPro-active China RoHS declaration
