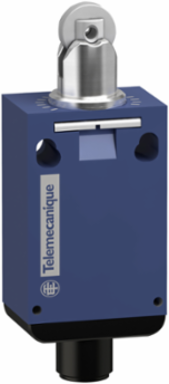

Telemecanique Sensors XCMV2502M12 Limit switch, Limit switches XC Standard, XCMD, steel roller plunger, 1NC+1 NO, slow, M12

This product is part of the XC Standard range, an offer of limit switches. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 NC and 1 NO, form Zb, slow break contacts. It provides switch actuation of 30° cam. The limit switch has a spring return metal roller plunger and supports lateral approach in 2 directions. The movement of the limit switch operating head is linear. It is furnished with 4-pin M12 male connector for electrical connection. It is an IP66/IP69/IK04 rated product. This linear head limit switch has a plug-in body, made of Zamak. Its dimensions are 30mm (width) x 21mm (depth) x 80mm (height). It weighs 0.09kg. This XCMV limit switch is dedicated to mobile equipment. This product is certified by cURus and CCC. It meets UL 508, CSA, C22.2 No 14, EN/IEC 60947-5-1 and EN/IEC 60204-1 standards. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047 and EN 50041
