Telemecanique Sensors XCMV2102D44 Limit switch, Limit switches XC Standard, XCMD, steel roller plunger, 1NC+1 NO, snap, DT04 4P
- MPN: XCMV2102D44
- PPN: TES-XCMV2102D44
- UNSPSC: 39122213
CAD
$163.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

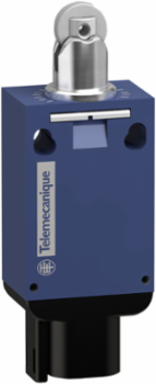

This product is part of the XC Standard range, an offer of limit switches. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 NC and 1 NO, form Zb, snap action contacts. It provides switch actuation of 30° cam. The limit switch has a spring return metal roller plunger and supports lateral approach in 2 directions. The movement of the limit switch operating head is linear. It is furnished with 4-pin DT04-4P male connector for electrical connection. It is an IP66/IP69/IK06 rated product. This linear head limit switch has a plug-in body, made of Zamak. Its dimensions are 30mm (width) x 21mm (depth) x 86mm (height). It weighs 0.09kg. This XCMV limit switch is dedicated to mobile equipment. This product is certified by cURus and CCC. It meets UL 508, CSA, C22.2 No 14, EN/IEC 60947-5-1 and EN/IEC 60204-1 standards. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047 and EN 50041
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the body
- Sensor Design
- miniature
- Head Material
- zamak
- Head Type
- plunger head
- Series Name
- standard format
- Body Type
- plug-in body
- Body Material
- zamak
- Number Of Poles
- 2
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return roller plunger metal
Product Or Component Typelimit switch
Materialmetal
Type Of Approachlateral approach, 2 directions
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Device Short NameXCMD
Complementary
- Height
- 86-86 mm
- Electrical Connection
- male connector DT04-4P, 4 pins
- Net Weight
- 0.09 kg
- Switch Actuation
- by 30° cam
- Electrical Durability
- 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- [Ie] Rated Operational Current
- 1 A 24 V, DC-13 EN/IEC 60947-5-1 appendix A || 3 A 24 V, AC-14
- Maximum Actuation Speed
- 0.5 m/s
- Width
- 30 mm
- Maximum Resistance Across Terminals
- 25 mOhm IEC 60255-7 category 3
Short-Circuit Protection6 A cartridge fuse gG
[Ithe] Conventional Enclosed Thermal Current6 A
[Uimp] Rated Impulse Withstand Voltage0.8 kV IEC 60664 || 0.8 kV IEC 60947-1
[Ui] Rated Insulation Voltage36 V 3)IEC 60947-5-1
Positive Opening Minimum Force35 N
Contacts Insulation FormZb
Mechanical Durability10000000 cycles
Minimum Force For Tripping7 N
Depth21 mm
Environment
- Product Certifications
- cURus || CCC
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 25 gn 18 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 || IP69 conforming to IEC 60529
- Electrical Shock Protection Class
- class III IEC 61140 || class III NF C 20-030
Ik Degree Of ProtectionIK06 EN 62262
StandardsUL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60204-1
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110612EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI110612EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
