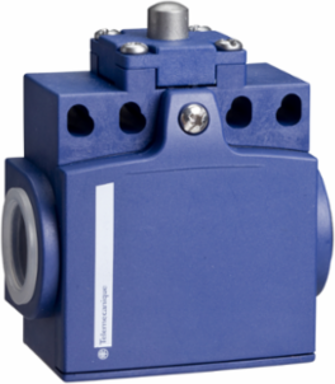

Telemecanique Sensors XCNT2110P16 Limit switch, Limit switches XC Standard, XCNT, metal end plunger, 1NC+1 NO, snap, M16
- MPN: XCNT2110P16
- PPN: TES-XCNT2110P16
CAD
$31.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCNT, metal end plunger, 1NC+1 NO, snap, M16
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the body
- Sensor Design
- compact
- Product Or Component Type
- limit switch
- Material
- plastic
- Type Of Approach
- vertical approach, 1 direction
- Contacts Type And Composition
- 1 NC + 1 NO
- Contact Operation
- snap action
- Device Short Name
- XCNT
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return plunger metal
Cable Entry2 entries tapped for M16 x 1.5 cable gland 7-13 mm
Head Materialplastic
Head Typeplunger head
Series Namestandard format
Body Typefixed
Body Materialplastic
Number Of Poles2
Complementary
- Height
- 67.5-67.5 mm
- Electrical Connection
- screw-clamp open terminals 1 x 0.34...2 x 1.5 mm²
- Switch Actuation
- on end
- Positive Opening Minimum Force
- 30 N
- Mechanical Durability
- 10000000 cycles
- Minimum Force For Tripping
- 15 N
- Width
- 58.8 mm
Short-Circuit Protection10 A cartridge fuse gG
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Contacts Insulation FormZb
Maximum Actuation Speed0.5 m/s
Contact Code DesignationA300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Environment
- Product Certifications
- UL || CSA || CCC
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP65 IEC 60529
- Electrical Shock Protection Class
- class II IEC 61140 || class II NF C 20-030
Ik Degree Of ProtectionIK04 EN 50102
StandardsEN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60204-1 || UL 508
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110606EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI110603EN
