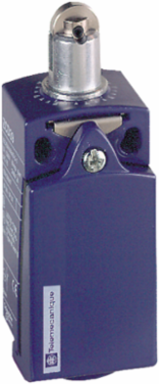

Telemecanique Sensors XCKD2102P16 Limit switch, Limit switches XC Standard, XCKD, steel roller plunger, 1NC+1 NO, snap, M16
- MPN: XCKD2102P16
- PPN: TES-XCKD2102P16
- UNSPSC: 39122213
CAD
$84.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XCKD compact format (CENELEC EN 50047) limit switch has a steel roller plunger and a Zamak body. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is ideal for all industrial machines like packaging, materials handling, conveyors, machining, food and beverage. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards and is also RoHS compliant. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the body
- Sensor Design
- compact form C CENELEC EN 50047
- Head Material
- zamak
- Head Type
- plunger head
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- zamak
- Number Of Poles
- 2
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return roller plunger metal
Product Or Component Typelimit switch
Materialmetal
Type Of Approachlateral approach, 2 directions
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Device Short NameXCKD
Complementary
- Height
- 65-65 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Cable Entry
- 1 entry tapped for M16 x 1.5 cable gland 4-8 mm
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
- Positive Opening Minimum Force
- 36 N
- Contacts Insulation Form
- Zb
- Maximum Actuation Speed
- 0.5 m/s
- Contact Code Designation
- A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN 60947-5-1 || A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN 60947-5-1 || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A IEC 60947-5-1 appendix A
- Depth
- 30 mm
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3
Terminals Description Iso N°1(21-22)NC || (13-14)NO
Electrical Connectionscrew-clamp terminals 1 x 0.34...2 x 1.5 mm²
Net Weight0.185 kg
Switch Actuationby 30° cam
Electrical Durability5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C
Positive Openingwith
Mechanical Durability10000000 cycles
Minimum Force For Tripping12 N
Width31 mm
Repeat Accuracy0.1 mm on the tripping points with 1 million operating cycles
Environment
- Product Certifications
- CCC || UL || CSA
- Ambient Air Temperature For Operation
- -25-70 °C
- Ip Degree Of Protection
- IP66IEC 60529 || IP67IEC 60529
- Vibration Resistance
- 25 gn 10-500 Hz)IEC 60068-2-6
- Electrical Shock Protection Class
- class I IEC 61140 || class I NF C 20-030
Ik Degree Of ProtectionIK06 EN 50102
StandardsIEC 60947-5-1 || CSA C22.2 No 14 || IEC 60204-1 || EN 60204-1 || UL 508 || EN 60947-5-1
Shock Resistance50 gn 11 ms IEC 60068-2-27
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
