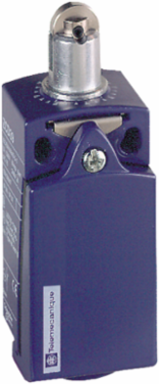

Limit switch, Limit switches XC Standard, XCKD, steel roller plunger, 1NC+1 NO, slow, M16

Documentation & Downloads

Telemecanique Sensors XCKD2502P16 Limit switch, Limit switches XC Standard, XCKD, steel roller plunger, 1NC+1 NO, slow, M16

MPN: XCKD2502P16
PPN: TES-XCKD2502P16
UNSPSC: 39122213

CAD

$87.58

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch, Limit switches XC Standard, XCKD, steel roller plunger, 1NC+1 NO, slow, M16

Documentation & Downloads

Specifications

Key Specifications

Movement Of Operating Head: linear

Fixing Mode: by the body

Sensor Design: compact form C CENELEC EN 50047

Head Material: zamak

Head Type: plunger head

Series Name: standard format

Body Type: fixed

Body Material: zamak

Number Of Poles: 2

Range Of ProductTelemecanique Limit switches XC Standard

Type Of Operatorspring return roller plunger metal

Product Or Component Typelimit switch

Materialmetal

Type Of Approachlateral approach, 2 directions

Contacts Type And Composition1 NC + 1 NO

Contact Operationslow-break, break before make

Device Short NameXCKD

Complementary

Height: 65-65 mm

Short-Circuit Protection: 10 A cartridge fuse gG

Cable Entry: 1 entry tapped for M16 x 1.5 cable gland 4-8 mm

[Uimp] Rated Impulse Withstand Voltage: 6 kV IEC 60664 || 6 kV IEC 60947-1

[Ui] Rated Insulation Voltage: 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14

Positive Opening Minimum Force: 36 N

Contacts Insulation Form: Zb

Maximum Actuation Speed: 0.5 m/s

Contact Code Designation: A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN 60947-5-1 || A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN 60947-5-1 || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A IEC 60947-5-1 appendix A

Depth: 30 mm

Maximum Resistance Across Terminals: 25 MOhm IEC 60255-7 category 3

Terminals Description Iso N°1(13-14)NO || (21-22)NC

Electrical Connectionscrew-clamp terminals 1 x 0.5...2 x 2.5 mm²

Net Weight0.185 kg

Switch Actuationby 30° cam

Electrical Durability5000000 cycles, DC-13, 120 V, 7 W 60 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 13 W 60 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 9 W 60 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C

Positive Openingwith

Mechanical Durability10000000 cycles

Minimum Force For Tripping12 N

Width31 mm

Repeat Accuracy0.1 mm on the tripping points with 1 million operating cycles

Environment

Product Certifications: UL || CCC || CSA

Ambient Air Temperature For Operation: -25-70 °C

Ip Degree Of Protection: IP66IEC 60529 || IP67IEC 60529

Vibration Resistance: 25 gn 10-500 Hz)IEC 60068-2-6

Electrical Shock Protection Class: class I IEC 61140 || class I NF C 20-030

Ik Degree Of ProtectionIK06 EN 50102

StandardsUL 508 || EN 60947-5-1 || EN 60204-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60204-1

Shock Resistance50 gn 11 ms IEC 60068-2-27

Ambient Air Temperature For Storage-40-70 °C

Protective TreatmentTC

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP110614EN

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
