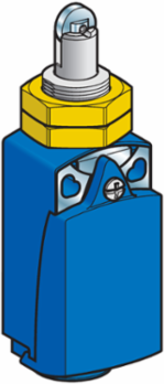

Telemecanique Sensors XCKD21H2G11 Limit switch, Limit switches XC Standard, XCKD, M18 steel roller plunger, 1NC+1 NO, snap, Pg11
- MPN: XCKD21H2G11
- PPN: TES-XCKD21H2G11
CAD
$138.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCKD, M18 steel roller plunger, 1NC+1 NO, snap, Pg11
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the head
- Sensor Design
- compact
- Head Material
- zamak
- Head Type
- M18 plunger head
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- zamak
- Number Of Poles
- 2
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return roller plunger metal
Product Or Component Typelimit switch
Materialmetal
Type Of Approachlateral approach, 2 directions
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Device Short NameXCKD
Complementary
- Height
- 65-65 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Cable Entry
- 1 entry tapped for Pg 11 cable gland
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
- Positive Opening Minimum Force
- 36 N
- Contacts Insulation Form
- Zb
- Maximum Actuation Speed
- 0.5 m/s
- Contact Code Designation
- A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN 60947-5-1 || A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN 60947-5-1 || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A IEC 60947-5-1 appendix A
- Depth
- 30 mm
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3
Terminals Description Iso N°1(21-22)NC || (13-14)NO
Electrical Connectionscrew-clamp terminals 1 x 0.34...2 x 1.5 mm²
Net Weight0.22 kg
Switch Actuationby 30° cam
Electrical Durability5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Openingwith
Mechanical Durability10000000 cycles
Minimum Force For Tripping10 N
Width31 mm
Repeat Accuracy0.1 mm on the tripping points with 1 million operating cycles
Environment
- Product Certifications
- CSA || CCC || UL
- Ambient Air Temperature For Operation
- -25-70 °C
- Ip Degree Of Protection
- IP66IEC 60529 || IP67IEC 60529
- Vibration Resistance
- 25 gn 10-500 Hz)IEC 60068-2-6
- Electrical Shock Protection Class
- class I IEC 61140 || class I NF C 20-030
Ik Degree Of ProtectionIK06 EN 50102
StandardsCSA C22.2 No 14 || UL 508 || IEC 60204-1 || EN 60947-5-1 || EN 60204-1 || IEC 60947-5-1
Shock Resistance50 gn 11 ms IEC 60068-2-27
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
