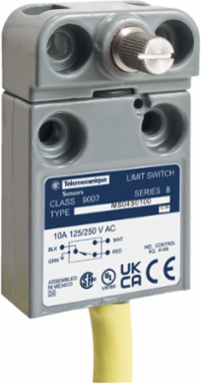

Telemecanique Sensors 9007ML04S0100 Limit switch, 9007, 240 VAC 10amp ml +options
- MPN: 9007ML04S0100
- UPC: 785901113409
- PPN: TES-9007ML04S0100
- UNSPSC: 39122213
CAD
$277.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, 9007, 240 VAC 10amp ml +options
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- miniature potted
- Range Of Product
- 9007
- Sensor Design
- miniature
- Material
- metal
- Number Of Poles
- 1
Body Typefixed
Body Materialcast zinc
Product Or Component Typelimit switch
Device Short Name9007MS/ML
Head Typerotary head
Complementary
- Switch Actuation
- CW and CCW || from left and right
- Type Of Approach
- lateral approach, 2 directions
- Height
- 2.49-2.49 in
- Sale Per Indivisible Quantity
- 1
- [Ui] Rated Insulation Voltage
- 300 V 3)UL 508 || 300 V 3)CSA C22.2 No 14
- Tripping Angle
- 40 °
- [Ie] Rated Operational Current
- 6 A 120 V AC, A300 NEMA rating designation || 3 A 240 V AC, A300 NEMA rating designation || 5 A 28 V DC
- Contacts Material
- silver contacts
- Maximum Actuation Speed
- 130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Wire Insulation Material
- PVC
- Switch Function
- SPDT-DB
- Marking
- CE || CSA || UL
- Depth
- 0.62 in
- Electrical Durability
- 100000 cycles
Maximum Displacement Angle70 °
Contacts Type And CompositionNC-NO
Movement Of Operating Headrotary
Terminals Description Iso N°1(black-orange)NO || (green-yellow)gnd || (red-white)NC
Positive Openingwithout
Contact Operationsnap action
Fixing Modeby the body
Mechanical Durability10000000 cycles
Type Of Operatorspring return without operating lever -
Type Of CableSJTO AWG 18), 3 ft, Yellow
Contact FormForm Z
Electrical Connectionpre-wired cable bottom
Width1.56 in
Minimum Torque For Tripping48 ozf.in
Net Weight1.2 lb(US)
Environment
- Product Certifications
- CSA || UL || CE
- Ambient Air Temperature For Storage
- -40-220 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250
- Vibration Resistance
- 10 gn 75-1200 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP67 conforming to IEC 60529
Ambient Air Temperature For Operation-40-220 °F
StandardsLR 25490 Class 32 11 03 || E78403
Shock Resistance35 gn 9 ms IEC 60068-2-27
Protective Treatmentepoxy powder coat
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
