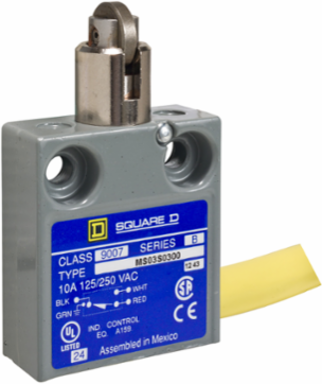

Telemecanique Sensors 9007MS03S0106 Limit switch 9007 MS/ML, cross roller plunger, 3' side cable

MPN: 9007MS03S0106
UPC: 785901001300
PPN: TES-9007MS03S0106

$193.47

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch 9007 MS/ML, cross roller plunger, 3' side cable

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Fixing mode	By the body
Type of operator	Spring return cross roller plunger steel -
Switch actuation	By 30° cam
Switch function	SPDT
Contacts material	Silver contacts
Positive opening	Without
Type of cable	SJTO cable (AWG 18), 3 ft, yellow
Wire insulation material	PVC

Movement of operating head	Linear
Type of approach	Traverse approach, 2 directions
Contacts type and composition	NC-NO
Contact form	Form C
Contact operation	Snap action
Electrical connection	Pre-wired cable side
Terminals description ISO n°1	(black)com (green-yellow)gnd (red)NC (white)NO
Marking	CE CSA UL

Main

Range of product	9007
Product or component type	Limit switch
Sensor design	Miniature
Head type	Plunger head
Body material	Cast zinc

Series name	Miniature potted
Device short name	9007MS/ML
Body type	Fixed
Material	Metal

Environment

Shock resistance	35 gn for 9 ms conforming to IEC 60068-2-27
NEMA degree of protection	NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250
Protective treatment	Epoxy powder coat
Standards	E78403 LR 25490 Class 32 11 03

Vibration resistance	10 gn (f= 75-1200 Hz) conforming to IEC 60068-2-6
IP degree of protection	IP67 conforming to IEC 60529
Product certifications	CE CSA UL
