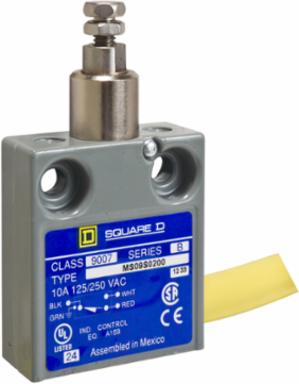

Telemecanique Sensors 9007MS09S0506 Limit switch, 9007, ms top push plunger, adjustable, 18' side cable
- MPN: 9007MS09S0506
- UPC: 785901282891
- PPN: TES-9007MS09S0506
- UNSPSC: 39122213
CAD
$287.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, 9007, ms top push plunger, adjustable, 18' side cable
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- miniature potted
- Body Type
- fixed
- Sensor Design
- miniature
- Material
- metal
- Number Of Poles
- 1
Range Of Product9007
Body Materialcast zinc
Product Or Component Typelimit switch
Device Short Name9007MS/ML
Head Typeplunger head
Complementary
- Switch Actuation
- on end
- Contacts Type And Composition
- NC-NO
- Movement Of Operating Head
- linear
- Terminals Description Iso N°1
- (black)com || (red)NC || (white)NO || (green-yellow)gnd
- Positive Opening
- without
- [Ie] Rated Operational Current
- 6 A 120 V AC, A300 NEMA rating designation || 3 A 240 V AC, A300 NEMA rating designation || 5 A 28 V DC
- Contacts Material
- silver contacts
- Maximum Force For Tripping
- 80 ozf
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Wire Insulation Material
- PVC
- Switch Function
- SPDT
- Marking
- CSA || CE || UL
- Depth
- 0.62 in
- Net Weight
- 1.2 lb(US)
Type Of Approachvertical approach, 1 direction
Height1.75-1.75 in
Sale Per Indivisible Quantity1
[Ui] Rated Insulation Voltage300 V 3)UL 508 || 300 V 3)CSA C22.2 No 14
Contact Operationsnap action
Fixing Modeby the body
Mechanical Durability10000000 cycles
Type Of Operatorspring return plunger stainless steel adjustable
Type Of CableSJTO AWG 18), 18 ft, yellow
Contact FormForm C
Electrical Connectionpre-wired cable side
Width1.56 in
Electrical Durability100000 cycles
Environment
- Product Certifications
- CE || UL || CSA
- Ambient Air Temperature For Storage
- -40-220 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250
- Vibration Resistance
- 10 gn 75-1200 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP67 IEC 60529
Ambient Air Temperature For Operation-40-220 °F
StandardsE78403 || LR 25490 Class 32 11 03
Shock Resistance35 gn 9 ms IEC 60068-2-27
Protective Treatmentepoxy powder coat
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
