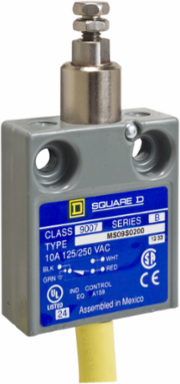

Telemecanique Sensors 9007MS09S0500 Limit switch, 9007, 240 VAC 10amp ms +options
- MPN: 9007MS09S0500
- UPC: 785901752424
- PPN: TES-9007MS09S0500
- UNSPSC: 39122213
CAD
$267.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, 9007, 240 VAC 10amp ms +options
Documentation & Downloads
Specifications
Key Specifications
| Series Name | miniature potted |
|---|---|
| Range Of Product | 9007 |
| Sensor Design | miniature |
| Material | metal |
| Number Of Poles | 1 |
| Body Type | fixed |
|---|---|
| Body Material | cast zinc |
| Product Or Component Type | limit switch |
| Device Short Name | 9007MS/ML |
| Head Type | plunger head |
Complementary
| Switch Actuation | on end |
|---|---|
| Contacts Type And Composition | NC-NO |
| Movement Of Operating Head | linear |
| Terminals Description Iso N°1 | (green-yellow)gnd || (black)com || (white)NO || (red)NC |
| Positive Opening | without |
| [Ie] Rated Operational Current | 6 A 120 V AC, A300 NEMA rating designation || 3 A 240 V AC, A300 NEMA rating designation || 5 A 28 V DC |
| Contacts Material | silver contacts |
| Maximum Force For Tripping | 80 ozf |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Wire Insulation Material | PVC |
| Switch Function | SPDT |
| Marking | CE || CSA || UL |
| Depth | 0.62 in |
| Net Weight | 1.2 lb(US) |
| Type Of Approach | vertical approach, 1 direction |
|---|---|
| Height | 1.75-1.75 in |
| Sale Per Indivisible Quantity | 1 |
| [Ui] Rated Insulation Voltage | 300 V 3)UL 508 || 300 V 3)CSA C22.2 No 14 |
| Contact Operation | snap action |
| Fixing Mode | by the body |
| Mechanical Durability | 10000000 cycles |
| Type Of Operator | spring return plunger stainless steel adjustable |
| Type Of Cable | SJTO AWG 18), 18 ft, Yellow |
| Contact Form | Form C |
| Electrical Connection | pre-wired cable bottom |
| Width | 1.56 in |
| Electrical Durability | 100000 cycles |
Environment
| Product Certifications | CSA || UL || CE |
|---|---|
| Ambient Air Temperature For Storage | -40-220 °F |
| Nema Degree Of Protection | NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 |
| Vibration Resistance | 10 gn 75-1200 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Ambient Air Temperature For Operation | -40-220 °F |
|---|---|
| Standards | LR 25490 Class 32 11 03 || E78403 |
| Shock Resistance | 35 gn 9 ms IEC 60068-2-27 |
| Protective Treatment | epoxy powder coat |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Environmental Disclosure | ENVPEP111160EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
|---|---|
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
