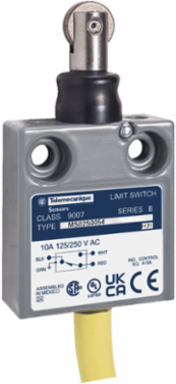

Telemecanique Sensors 9007MS02S0102 Limit switch, 9007, 240 VAC 10amp ms +options

MPN: 9007MS02S0102
UPC: 785901319368
PPN: TES-9007MS02S0102
UNSPSC: 39122213

$193.47

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch, 9007, 240 VAC 10amp ms +options

Documentation & Downloads

Specifications

Key Specifications

Series Name	miniature potted
Body Type	fixed
Sensor Design	miniature
Material	metal
Number Of Poles	1

Range Of Product	9007
Body Material	cast zinc
Product Or Component Type	limit switch
Device Short Name	9007MS/ML
Head Type	plunger head

Complementary

Switch Actuation	by 30° cam
Contacts Type And Composition	NC-NO
Movement Of Operating Head	linear
Terminals Description Iso N°1	(red)NC \|\| (green-yellow)gnd \|\| (black)com \|\| (white)NO
Positive Opening	without
[Ie] Rated Operational Current	6 A 120 V AC, A300 NEMA rating designation \|\| 3 A 240 V AC, A300 NEMA rating designation \|\| 5 A 28 V DC
Contacts Material	silver contacts
Maximum Force For Tripping	80 ozf
[Ithe] Conventional Enclosed Thermal Current	10 A
Wire Insulation Material	PVC
Switch Function	SPDT
Marking	UL \|\| CSA \|\| CE
Depth	0.62 in
Net Weight	1.2 lb(US)

Type Of Approach	lateral approach, 2 directions
Height	1.75-1.75 in
Sale Per Indivisible Quantity	1
[Ui] Rated Insulation Voltage	300 V 3)UL 508 \|\| 300 V 3)CSA C22.2 No 14
Contact Operation	snap action
Fixing Mode	by the body
Mechanical Durability	10000000 cycles
Type Of Operator	spring return parallel roller plunger steel -
Type Of Cable	SJTO AWG 16), 3 ft, yellow
Contact Form	Form C
Electrical Connection	pre-wired cable bottom
Width	1.56 in
Electrical Durability	100000 cycles

Environment

Product Certifications	CE \|\| UL \|\| CSA
Ambient Air Temperature For Storage	-40-220 °F
Nema Degree Of Protection	NEMA 1 Nema type 250 \|\| NEMA 2 Nema type 250 \|\| NEMA 4 Nema type 250 \|\| NEMA 6 Nema type 250 \|\| NEMA 6P Nema type 250
Vibration Resistance	10 gn 75-1200 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP67 IEC 60529

Ambient Air Temperature For Operation	-40-220 °F
Standards	E78403 \|\| LR 25490 Class 32 11 03
Shock Resistance	35 gn 9 ms IEC 60068-2-27
Protective Treatment	epoxy powder coat
