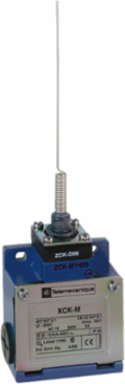

Telemecanique Sensors XCKM106H7 Limit switch, Limit switches XC Standard, XCKM, cats whisker, 1NC+1 NO, snap action, 1/2NPT
- MPN: XCKM106H7
- PPN: TES-XCKM106H7
CAD
$99.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCKM, cats whisker, 1NC+1 NO, snap action, 1/2NPT
Documentation & Downloads
Specifications
Key Specifications
- Type Of Approach
- multi-directional approach
- Contacts Type And Composition
- 1 NC + 1 NO
- Body Type
- fixed
- Contact Operation
- snap action
- Type Of Operator
- spring return cat''s whisker
- Cable Entry
- 3 entries tapped for 1/2" NPT cable gland
- Material
- metal
- Number Of Poles
- 2
Series Namestandard format
Movement Of Operating Headmulti-directional
Range Of ProductTelemecanique Limit switches XC Standard
Fixing Modeby the body
Body Materialzamak
Product Or Component Typelimit switch
Device Short NameXCKM
Head Typemulti-directional head
Complementary
- Switch Actuation
- by any moving part
- Height
- 64-64 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Positive Opening
- without
- Contacts Insulation Form
- Zb
- Mechanical Durability
- 10000000 cycles
- Contact Code Designation
- A300, AC-15 (Ue = 240 V), Ie = 3 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
- Depth
- 30 mm
- Number Of Steps
- 1
- [Ithe] Conventional Enclosed Thermal Current
- 10 A AC
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Terminals Description Iso N°1(21-22)NC || (13-14)NO
Electrical Durability5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Minimum Actuation Speed0.01 m/min
Electrical Connectionscrew-clamp terminals 1 x 0.34...2 x 1.5 mm²
Maximum Actuation Speed1 m/s
Width64 mm
Minimum Torque For Tripping0.13 N.m
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3
Environment
- Product Certifications
- CSA || UL || CCC
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- EN 60947-5-1 || EN 60204-1 || IEC 60204-1 || IEC 60947-5-1 || UL 508 || CSA C22.2 No 14
- Shock Resistance
- 50 gn 11 ms EN/IEC 60068-2-27
- Protective Treatment
- TC
Ik Degree Of ProtectionIK05 EN 50102
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass I IEC 61140 || class I NF C 20-030
Vibration Resistance25 gn 10-500 Hz)EN/IEC 60068-2-6
Ip Degree Of ProtectionIP66 conforming to EN/IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
