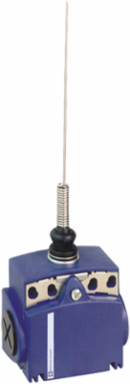

Telemecanique Sensors XCKT2106N12 Limit switch, Limit switches XC Standard, XCKT, cat's whisker, 1NC+1 NO, snap, 1/2NPT
- MPN: XCKT2106N12
- PPN: TES-XCKT2106N12
CAD
$89.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCKT, cat's whisker, 1NC+1 NO, snap, 1/2NPT
Documentation & Downloads
Specifications
Key Specifications
| Movement Of Operating Head | multi-directional |
|---|---|
| Fixing Mode | by the body |
| Sensor Design | compact |
| Head Material | zamak |
| Head Type | multi-directional head |
| Series Name | standard format |
| Body Type | fixed |
| Body Material | plastic |
| Number Of Poles | 2 |
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Type Of Operator | spring return cat''s whisker |
| Product Or Component Type | limit switch |
| Material | plastic |
| Type Of Approach | multi-directional approach |
| Contacts Type And Composition | 1 NC + 1 NO |
| Contact Operation | snap action |
| Device Short Name | XCKT |
Complementary
| Short-Circuit Protection | 10 A cartridge fuse gG |
|---|---|
| Cable Entry | 2 entries tapped for 1/2" NPT cable gland |
| Switch Actuation | by any moving part |
| Electrical Durability | 5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Contacts Insulation Form | Zb |
| Maximum Actuation Speed | 1 m/s |
| Minimum Torque For Tripping | 0.13 N.m |
| Electrical Connection | screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
|---|---|
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14 |
| Positive Opening | without |
| Mechanical Durability | 5000000 cycles |
| Contact Code Designation | A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A |
| Maximum Resistance Across Terminals | 25 MOhm IEC 60255-7 category 3 |
Environment
| Product Certifications | CSA || CCC || UL |
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 |
| Electrical Shock Protection Class | class II IEC 61140 || class II NF C 20-030 |
| Ik Degree Of Protection | IK04 EN 50102 |
|---|---|
| Standards | CSA C22.2 No 14 || EN 60204-1 || IEC 60204-1 || EN 60947-5-1 || UL 508 || IEC 60947-5-1 |
| Vibration Resistance | 25 gn 10-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TC |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110606EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Circularity Profile | ENVEOLI110603EN |
