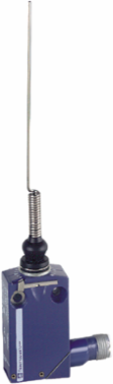

Telemecanique Sensors XCMD2106M12 Limit switch, Limit switches XC Standard, XCMD, cat's whisker, 1C/O, snap, M12
- MPN: XCMD2106M12
- PPN: TES-XCMD2106M12
- UNSPSC: 39122213
CAD
$221.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Limit switch, Limit switches XC Standard, XCMD, cat's whisker, 1C/O, snap, M12
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- multi-directional
- Fixing Mode
- by the body
- Sensor Design
- miniature
- Head Material
- zamak
- Head Type
- multi-directional head
- Series Name
- standard format
- Body Type
- plug-in body
- Body Material
- zamak
- Number Of Poles
- 1
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return cat''s whisker
Product Or Component Typelimit switch
Materialmetal
Type Of Approachmulti-directional approach
Contacts Type And Composition1 C/O
Contact Operationsnap action
Device Short NameXCMD
Complementary
- Height
- 50-50 mm
- Electrical Connection
- male connector M12, 4 pins
- Net Weight
- 0.085 kg
- Switch Actuation
- by any moving part
- Electrical Durability
- 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Contacts Insulation Form
- Za
- Mechanical Durability
- 5000000 cycles
- Minimum Force For Tripping
- 0.1 N
- Depth
- 16 mm
Short-Circuit Protection4 A cartridge fuse gG
[Ithe] Conventional Enclosed Thermal Current3 A
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60664 || 2.5 kV IEC 60947-1
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-5-1
Positive Openingwithout
[Ie] Rated Operational Current1.5 A 240 V, AC-15 EN/IEC 60947-5-1 appendix A || 0.1 A 250 V, DC-13 EN/IEC 60947-5-1 appendix A
Maximum Actuation Speed1 m/s
Width30 mm
Maximum Resistance Across Terminals25 mOhm IEC 60255-7 category 3
Environment
- Product Certifications
- UL || CSA || CCC
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 25 gn 18 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 || IP68 conforming to IEC 60529
- Electrical Shock Protection Class
- class I IEC 61140 || class I NF C 20-030
Ik Degree Of ProtectionIK06 EN 62262
StandardsEN/IEC 60204-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110612EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI110612EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
