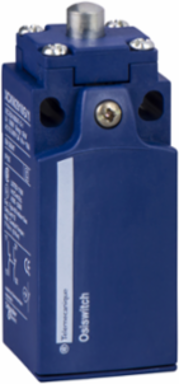

Telemecanique Sensors XCKN2710P20 Limit switch, Limit switches XC Standard, XCKN, metal end plunger, 2NC, slow, M20
- MPN: XCKN2710P20
- PPN: TES-XCKN2710P20
CAD
$40.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCKN, metal end plunger, 2NC, slow, M20
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the body
- Sensor Design
- compact
- Product Or Component Type
- limit switch
- Material
- plastic
- Type Of Approach
- vertical approach, 1 direction
- Contacts Type And Composition
- 2 NC
- Body Type
- fixed
- Body Material
- plastic
- Number Of Poles
- 2
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return plunger metal
Cable Entry1 entry tapped for M20 x 1.5 cable gland 7-13 mm
Head Materialplastic
Head Typeplunger head
Series Namestandard format
Sale Per Indivisible Quantity20
Contact Operationslow-break, simultaneous
Device Short NameXCKN
Complementary
- Height
- 75-75 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Net Weight
- 0.065 kg
- Switch Actuation
- on end
- Positive Opening Minimum Force
- 30 N
- Contacts Insulation Form
- Zb
- Maximum Actuation Speed
- 0.5 m/s
- Contact Code Designation
- A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
- Depth
- 30 mm
Terminals Description Iso N°1(11-12)NC || (21-22)NC
Electrical Connectionscrew-clamp terminals 1 x 0.34...2 x 1.5 mm²
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Positive Openingwith
Mechanical Durability10000000 cycles
Minimum Force For Tripping15 N
Width30 mm
Environment
- Product Certifications
- UL || CCC || CSA
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 45 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP65 IEC 60529
- Overvoltage Category
- class II IEC 61140 || class II NF C 20-030
Ik Degree Of ProtectionIK04 EN 50102
StandardsCSA C22.2 No 14 || EN/IEC 60204-1 || UL 508 || EN/IEC 60947-5-1
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1306065
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
