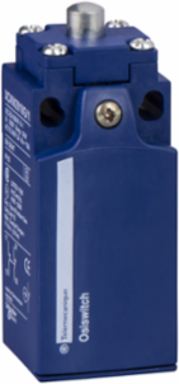

Telemecanique Sensors XCKN2510P20 Limit switch XCKN, metal, metal end plunger, 1NC+1NO, slow action, M20 cable entry
- MPN: XCKN2510P20
- PPN: TES-XCKN2510P20
CAD
$32.78
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch XCKN, metal, metal end plunger, 1NC+1NO, slow action, M20 cable entry
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 20 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Switch actuation | On end |
|---|---|
| Contacts insulation form | Zb |
| Contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
|---|---|
| Positive opening | With |
| Repeat accuracy | 0.1 mm on the tripping points with 1 million operating cycles |
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Product or component type | Limit switch |
| Sensor design | Compact form B |
| Head type | Plunger head |
| Body material | Plastic |
| Fixing mode | By the body |
| Type of operator | Spring return plunger metal |
| Cable entry | 1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm |
| Contact operation | Slow-break, break before make |
| Series name | Standard format |
|---|---|
| Device short name | XCKN |
| Body type | Fixed |
| Material | Plastic |
| Head material | Plastic |
| Movement of operating head | Linear |
| Type of approach | Vertical approach, 1 direction |
| Contacts type and composition | 1 NC + 1 NO |
Environment
| Shock resistance | 45 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| IP degree of protection | IP65 conforming to IEC 60529 |
| Overvoltage category | Class II conforming to IEC 61140, class II conforming to NF C 20-030 |
| Product certifications | CCC CSA UL |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
|---|---|
| IK degree of protection | IK04 conforming to IEC 62262 |
| Protective treatment | TC |
| Standards | CSA C22.2 No 14 IEC 60204-1 IEC 60947-5-1 UL 508 |
