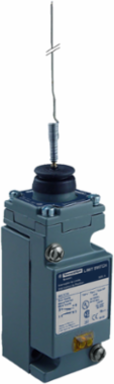

Telemecanique Sensors 9007C62L Limit switch, 9007, 600 V 10amp c +options
- MPN: 9007C62L
- UPC: 785901852049
- PPN: TES-9007C62L
- UNSPSC: 39122213
CAD
$272.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, 9007, 600 V 10amp c +options
Documentation & Downloads
Specifications
Key Specifications
| Switch Actuation | by any moving part |
|---|---|
| Series Name | heavy duty |
| Movement Of Operating Head | multi-directional |
| Body Type | plug-in |
| Positive Opening | without |
| Contact Operation | snap action |
| Fixing Mode | by the body |
| Product Or Component Type | limit switch |
| Device Short Name | 9007C |
| Number Of Poles | 2 |
| Type Of Approach | multi-directional approach, multi-directional approach |
|---|---|
| Contacts Type And Composition | 2(NC-NO) |
| Sale Per Indivisible Quantity | 1 |
| Range Of Product | 9007 |
| Electrical Connection | screw-clamp terminals AWG 22...AWG 12), 1-2 |
| Product Specific Application | standard box |
| Cable Entry | 1 entry for 1/2" - 14 NPT ANSI B1.20.1 |
| Material | metal |
| Type Of Operator | steel spring return wire whisker -) |
| Head Type | multi-directional head |
Complementary
| Maximum Displacement Angle | 90 ° |
|---|---|
| Terminals Description Iso N°1 | (1-2)NC || (5-6)NC || (3-4)NO || (7-8)NO |
| Tripping Angle | 20 ° |
| [Ie] Rated Operational Current | 1.2 A 600 V AC, A600 NEMA || 1.5 A 480 V AC, A600 NEMA || 3 A 240 V AC, A600 NEMA || 6 A 120 V AC, A600 NEMA || 0.11 A 250 V DC, R300 NEMA || 0.55 A 125 V DC, R300 NEMA |
| Mechanical Durability | 10000000 cycles |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Switch Function | DPDT-DB |
| Width | 1.55 in |
| Head Material | zinc |
| Net Weight | 1.25 lb(US) |
| Height | 9.07-9.07 in |
|---|---|
| [Ui] Rated Insulation Voltage | 600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block |
| Short-Circuit Protection | 10 A CC non-time delay |
| Contacts Material | silver contacts |
| Body Material | zinc |
| Contact Form | Form ZZ |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA |
| Depth | 1.79 in |
| Electrical Durability | 1000000 cycles |
| Local Signalling | without |
Environment
| Ambient Air Temperature For Storage | -20-185 °F |
|---|---|
| Nema Degree Of Protection | NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250 |
| Electrical Shock Protection Class | class 0 IEC 61140 |
| Vibration Resistance | 25 gn 10-150 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Environmental Characteristic | standard environment |
|---|---|
| Ambient Air Temperature For Operation | -20-185 °F standard environment |
| Shock Resistance | 60 gn 9 ms IEC 60068-2-27 |
| Protective Treatment | epoxy powder coat |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Environmental Disclosure | ENVPEP111160EN |
|---|---|
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
|---|
