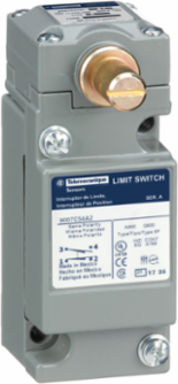

Telemecanique Sensors 9007C54A2Y128 Limit switch 9007C, 600 V, 10 A, option version, Zinc spring return without operating lever (low differential)9007C lever, Form Z, Low temperature
- MPN: 9007C54A2Y128
- UPC: 785901164029
- PPN: TES-9007C54A2Y128
CAD
$322.43
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch 9007C, 600 V, 10 A, option version, Zinc spring return without operating lever (low differential)9007C lever, Form Z, Low temperature
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Switch actuation | CW and CCW from left and right |
|---|---|
| Body material | Zinc |
| Head material | Zinc |
| Contact form | Form Z |
| Repeat accuracy | +/- 0.001 in linear travel of cam |
| Contact operation | Snap action |
|---|---|
| Contacts material | Silver contacts |
| Switch function | SPDT-DB |
| Terminals description ISO n°1 | (1-2)NC (3-4)NO |
| Local signalling | without |
Main
| Range of product | 9007 |
|---|---|
| Product or component type | Limit switch |
| Product specific application | Standard box |
| Head type | Rotary head |
| Fixing mode | By the body |
| Type of operator | Zinc spring return without operating lever (low differential)9007C lever |
| Electrical connection | Screw-clamp terminals (AWG 22...AWG 12), 1-2 |
| Contacts type and composition | NC-NO |
| Series name | Heavy duty |
|---|---|
| Device short name | 9007C |
| Body type | Plug-in |
| Material | Metal |
| Movement of operating head | Rotary |
| Type of approach | Lateral approach, 1 or 2 programmable direction |
| Cable entry | 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1 |
| Positive opening | Without |
Environment
| Shock resistance | 60 gn for 9 ms conforming to IEC 60068-2-27 |
|---|---|
| NEMA degree of protection | NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250 |
| Electrical shock protection class | Class 0 conforming to IEC 61140 |
| Protective treatment | Epoxy powder coat |
| Vibration resistance | 25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| Environmental characteristic | Low temperature |
