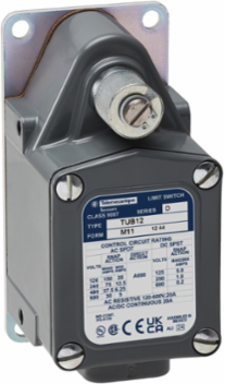

Telemecanique Sensors 9007TUB12M11 Limit switch, 9007, 600 VAC 12amp t +options
- MPN: 9007TUB12M11
- UPC: 785901168973
- PPN: TES-9007TUB12M11
- UNSPSC: 39122213
CAD
$613.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, 9007, 600 VAC 12amp t +options
Documentation & Downloads
Specifications
Key Specifications
| Series Name | severe duty |
|---|---|
| Device Short Name | T |
| Device Application | standard mill switch || universal mill switch || heavy duty |
|---|---|
| Head Type | rotary head |
Complementary
| Switch Actuation | CW and CCW |
|---|---|
| Tilting Angle | 45 ° |
| Short-Circuit Protection | 20 A Bussmann class CC KTK-R-20 non-time delay |
| Positive Opening | without |
| Contact Operation | snap action |
| Maximum Actuation Speed | 90 ft/min with 45° cam angle, levers only || 50 ft/min with 45° cam angle, levers only |
| [Ithe] Conventional Enclosed Thermal Current | 20 A |
| Cable Entry | conduit entry 20-20 mm UL 508 |
| Switch Function | SPDT-DB |
| [Uimp] Rated Impulse Withstand Voltage | 2200 V AC UL || 2500 V AC CE || 2640 V AC CSA |
| Minimum Torque For Tripping | 8 lbf.in |
| Repeat Accuracy | +/- 0.004 in 0.1 mm |
| Maximum Displacement Angle | 90 ° |
|---|---|
| Base Plate Style | style B |
| [Ui] Rated Insulation Voltage | 600 V |
| Tripping Angle | 0 ° |
| Contacts Material | silver flashed copper |
| Body Material | cast zinc |
| Contact Status | closed A for CCW position || open A for CW position || open B for CCW position || closed B for CW position |
| Contact Form | Form Z |
| Electrical Connection | screw clamp terminal AWG 22...AWG 12 |
| Contact Code Designation | A600 || Q600 |
| Type Of Operator | spring return lever arm to be ordered separately || maintained to be ordered separately |
Environment
| Product Certifications | CSA || CE || UL Listed |
|---|---|
| Nema Degree Of Protection | NEMA 1/2/4/12/13 |
| Shock Resistance | 30 gn |
| Protective Treatment | corrosion resistant gray paint |
| Ambient Air Temperature For Operation | -10-185 °F |
|---|---|
| Electrical Shock Protection Class | class 0 |
| Vibration Resistance | 10 gn 10-55 Hz) |
| Ip Degree Of Protection | IP65 || IP66 || IP67 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Environmental Disclosure | ENVPEP111160EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
|---|---|
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
