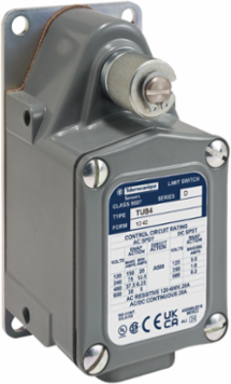

Telemecanique Sensors 9007TUB8 Limit switch 9007T, 600 VAC, 30 A, option version, Neutral position
- MPN: 9007TUB8
- UPC: 785901845003
- PPN: TES-9007TUB8
CAD
$579.47
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch 9007T, 600 VAC, 30 A, option version, Neutral position
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Base plate style | Style B |
|---|---|
| Fixing mode | By the body |
| Type of operator | Stay put without operating lever |
| Contacts material | Silver flashed copper |
| Function available | Neutral position |
| Positive opening | Without |
| Cable entry | 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1 |
| Contact form | Form Z |
| Contact code designation | A600, AC (Ue = 600 V) Ie = 5 A conforming to NEMA rating designation, A600, AC (Ue = 480 V) Ie = 6.25 A conforming to NEMA rating designation, A600, AC (Ue = 240 V) Ie = 12.5 A conforming to NEMA rating designation, A600, AC (Ue = 120 V) Ie = 20 A conforming to NEMA rating designation, P600, DC (Ue = 600 V) Ie = 0.2 A conforming to NEMA rating designation, P600, DC (Ue = 250 V) Ie = 1 A conforming to NEMA rating designation, P600, DC (Ue = 120 V) Ie = 5 A conforming to NEMA rating designation |
| Body material | Cast zinc |
|---|---|
| Movement of operating head | Rotary |
| Switch actuation | CW and CCW from left or right |
| Contact operation | Snap action |
| Type of approach | Lateral approach |
| Electrical connection | Screw-clamp terminals AWG 22...AWG 12 |
| Switch function | SPDT-DB |
| Repeat accuracy | +/- 0.004 in linear travel of cam on 1.5 in lever arm |
| Terminals description ISO n°1 | A (left side contact) B (right side contact) |
Main
| Range of product | 9007 |
|---|---|
| Series name | Severe duty mill |
| Device short name | 9007T/FT |
| Head type | Rotary head |
| Device application | Universal mill switch |
|---|---|
| Product or component type | Limit switch |
| Body type | Fixed |
Environment
| Protective treatment | Corrosion resistant gray paint |
|---|---|
| Vibration resistance | 10 gn (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Shock resistance | 30 gn for 9 ms conforming to IEC 60068-2-27 |
|---|---|
| NEMA degree of protection | NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250 |
| Electrical shock protection class | Class 0 conforming to IEC 61140 |
