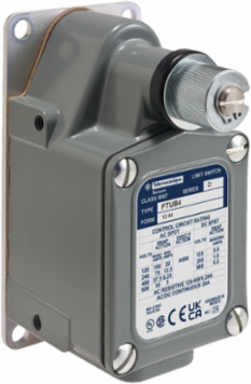

Telemecanique Sensors 9007FTUB1 Limit switch, 9007, 600 VAC 12amp t+ft +options
- MPN: 9007FTUB1
- UPC: 785901904007
- PPN: TES-9007FTUB1
- UNSPSC: 39122213
CAD
$808.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, 9007, 600 VAC 12amp t+ft +options
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- severe duty foundry
- Body Type
- fixed
- Product Or Component Type
- limit switch
- Device Short Name
- 9007T/FT
Sale Per Indivisible Quantity1
Range Of Product9007
Device Applicationuniversal foundry switch
Head Typerotary head
Complementary
- Switch Actuation
- CW || from left
- Height
- 4.66-4.66 in
- Base Plate Style
- style B
- Type Of Approach
- lateral approach
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 609470-1 || 600 V 3)UL 508 || 600 V 3)CSA C22.2 No 14
- Tripping Angle
- 14 °
- Fixing Mode
- by the body
- Maximum Actuation Speed
- 130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only
- Body Material
- cast zinc
- Cable Entry
- 1 entry for 1/2" - 14 NPT ANSI B1.20.1
- Switch Function
- SPDT-DB
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV AC for 1 minute CE || 2.2 kV AC for 1 minute UL || 2.64 kV AC for 1 minute CSA
- Width
- 2.25 in
- Minimum Torque For Tripping
- 12 lbf.in
- Number Of Poles
- 1
- Contact Sequence Number
- 1
Maximum Displacement Angle88 °
Movement Of Operating Headrotary
Terminals Description Iso N°1B (right side contact) || A (left side contact)
Short-Circuit Protection20 A Bussmann class CC KTK-R-21 fuse non-time delay
Positive Openingwithout
Contact Operationsnap action
Contacts Materialsilver flashed copper
Type Of Operatorspring return without operating lever
[Ithe] Conventional Enclosed Thermal Current20 A
Contact FormForm Z
Electrical Connectionscrew-clamp terminals AWG 22...AWG 12
Contact Code DesignationA600, AC (Ue = 600 V) Ie = 5 A NEMA rating designation || A600, AC (Ue = 480 V) Ie = 6.25 A NEMA rating designation || A600, AC (Ue = 240 V) Ie = 12.5 A NEMA rating designation || A600, AC (Ue = 120 V) Ie = 20 A NEMA rating designation || P600, DC (Ue = 600 V) Ie = 0.2 A NEMA rating designation || P600, DC (Ue = 250 V) Ie = 1 A NEMA rating designation || P600, DC (Ue = 120 V) Ie = 5 A NEMA rating designation
Depth3.41 in
Net Weight2.5 lb(US)
Repeat Accuracy+/- 0.004 in linear travel of cam on 1.5 in lever arm
Environment
- Ambient Air Temperature For Operation
- -10-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
- Shock Resistance
- 30 gn 9 ms IEC 60068-2-27
- Protective Treatment
- corrosion resistant gray paint
Ambient Air Temperature For Storage-10-185 °F
Electrical Shock Protection Classclass 0 IEC 61140
Vibration Resistance10 gn 10-55 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP67 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
