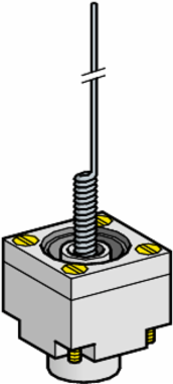

Telemecanique Sensors ZCKE066 Limit switch head, Limit switches XC Standard, ZCKE, cat's whisker, -40 °C
- MPN: ZCKE066
- PPN: TES-ZCKE066
- UNSPSC: 39122213
CAD
$85.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch head, Limit switches XC Standard, ZCKE, cat's whisker, -40 °C
Documentation & Downloads
Specifications
Key Specifications
- Type Of Approach
- multi-directional approach
- Movement Of Operating Head
- multi-directional
- Type Of Operator
- cat's whisker spring return
- Associated Body
- ZCKJ2H7 || ZCKJ1 || ZCKJD31H7 || ZCKJ8H29 || ZCKJD35 || ZCKJ21H29 || ZCKJD39H29 || ZCKJ7H29 || ZCKJD37H7 || ZCKJD37H29 || ZCKJ11H29 || ZCKJ9 || ZCKJ1H7 || ZCKJ6 || ZCKJ1H29 || ZCKJ5 || ZCKJ8 || ZCKJ7 || ZCKJ2 || ZCKJ21H7 || ZCKJD37 || ZCKJD35H29 || ZCKJ9H29 || ZCKJ5H7 || ZCKJ21 || ZCKJ6H7 || ZCKJ7H7 || ZCKJ2H29 || ZCKJD31 || ZCKJD35H7 || ZCKJ8H7 || ZCKJD39 || ZCKJ11H7 || ZCKJ11 || ZCKJD31H29 || ZCKJ9H7 || ZCKJD39H7 || ZCKJ5H29 || ZCKJ6H29
- Device Short Name
- ZCKE
Series Namestandard format
Range Of ProductTelemecanique Limit switches XC Standard
Product Or Component Typelimit switch head
Product CompatibilityXCKJ
Head Typemulti-directional head
Complementary
- Switch Actuation
- by any moving part
- Head Material
- metal
Positive Openingwithout
Net Weight0.115 kg
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Environmental Characteristic
- low temperature
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
