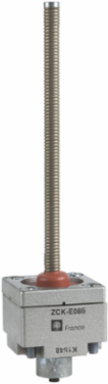

Telemecanique Sensors ZCKE086 Limit switch head, Limit switches XC Standard, ZCKE, spring rod, -40 °C
- MPN: ZCKE086
- PPN: TES-ZCKE086
- UNSPSC: 39122213
CAD
$85.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The ZCKE limit switch head is a part of the OsiSense XC product range of limit switches. It has a spring rod spring return operation and multidirectional movement of the operating head. The head is compatible with XCKJ and has multiple associated limit switch bodies. The spring return rod supports the multidirectional approach. It weighs 0.125kg. It is suitable for the specific applications such as hoisting, mining, minerals and metals or belt conveying. It is compatible with the XCKJ limit switches. It is associated with ZCKJD35H29, ZCKJ1H29, ZCKJ8H7, ZCKJ21, ZCKJ6, ZCKJ9, ZCKJ1H7, ZCKJ2, ZCKJD39H7 and ZCKJ5H29 bodies. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | multi-directional approach |
|---|---|
| Movement Of Operating Head | multi-directional |
| Type Of Operator | spring rod spring return |
| Associated Body | ZCKJD35H29 || ZCKJ1H29 || ZCKJ8H7 || ZCKJ21 || ZCKJ6 || ZCKJ9 || ZCKJD39 || ZCKJ9H7 || ZCKJ2H7 || ZCKJ11H7 || ZCKJ6H7 || ZCKJ5 || ZCKJ21H29 || ZCKJ5H7 || ZCKJ8H29 || ZCKJD31 || ZCKJD37H29 || ZCKJ7H7 || ZCKJ2H29 || ZCKJ11 || ZCKJD37H7 || ZCKJD31H7 || ZCKJ1 || ZCKJ7H29 || ZCKJ6H29 || ZCKJ21H7 || ZCKJ7 || ZCKJ11H29 || ZCKJD39H29 || ZCKJD31H29 || ZCKJ8 || ZCKJD37 || ZCKJD35H7 || ZCKJ9H29 || ZCKJD35 || ZCKJ1H7 || ZCKJ2 || ZCKJD39H7 || ZCKJ5H29 |
| Device Short Name | ZCKE |
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Product Or Component Type | limit switch head |
| Product Compatibility | XCKJ |
| Head Type | multi-directional head |
Complementary
| Switch Actuation | by any moving part |
|---|---|
| Head Material | metal |
| Positive Opening | without |
|---|---|
| Net Weight | 0.125 kg |
Environment
| Ambient Air Temperature For Operation | -40-70 °C |
|---|---|
| Environmental Characteristic | low temperature |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Environmental Disclosure | ENVPEP110614EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
|---|---|
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
