Telemecanique Sensors ZCKY13 Limit switch lever, Limit switches XC Standard, ZCKY, steel roller -40...120 °C
- MPN: ZCKY13
- PPN: TES-ZCKY13
- UNSPSC: 39122213
CAD
$24.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

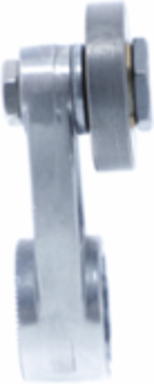

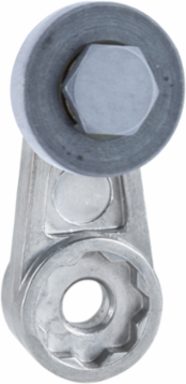

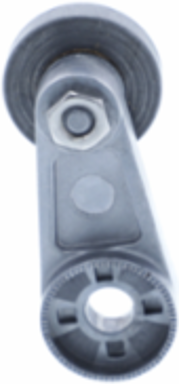

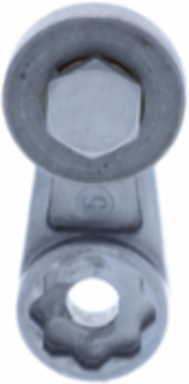

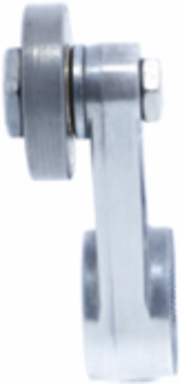

This ZCK standard, industrial EN 50041 format lever has a steel roller lever. It can be matched with any head from the XCKD, XCKP and XCKT ranges.
Documentation & Downloads
Specifications
Additional
| Switch Actuation | by 30 cam |
|---|---|
| Movement of Operating Head | rotary |
| Type of Approach | lateral approach |
| Ambient Air Temperature For Storage | -40 to 70 C standard, -40 to 70 C low temperature, 10 to 120 C high temperature |
| Product Or Component Type | limit switch lever |
| Product Compatibility | XCKJ |
| Associated Head | ZCKE05 |
| Eu Rohs Directive | Product out of EU RoHS legal scope |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110614EN |
| California Proposition 65 | Prop 65 Warning |
| Country of Origin | Indonesia |
| Positive Opening | with |
|---|---|
| Type of Operator | roller lever spring return metal |
| Ambient Air Temperature For Operation | -25 to 70 C standard, -40 to 70 C low temperature, 10 to 120 C high temperature |
| Material | steel |
| Series Name | standard format |
| Device Short Name | ZCKY |
| Range Of Product | Telemecanique Limit switches XC Standard |
| Rohs Exemption Information | Yes |
| Reach Regulation | Contains SVHC above threshold |
| Environmental Characteristic | standard, high temperature, low temperature |
| Warranty | 18 months |
