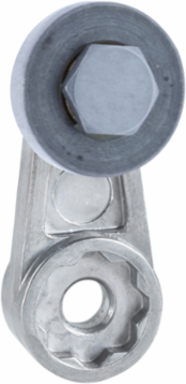

Telemecanique Sensors ZCKY14 Limit switch lever, Limit switches XC Standard, ZCKY, steel roller ball bearing mounted, -40...120 °C
Telemecanique Sensors ZCKY14 Limit switch lever, Limit switches XC Standard, ZCKY, steel roller ball bearing mounted, -40...120 °C
- MPN: ZCKY14
- PPN: TES-ZCKY14
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$44.12/ EA
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch lever provides switch actuation by 30° cam with positive opening operation. The steel spring return roller lever (ball bearing mount) supports lateral approach and switch actuation by 30° cam. The movement of operating head is rotary. The rotary head switch lever is made of steel. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKJ series limit switches. Its associated head is ZCKE05. Limit switches for contact sensing of inflexible objects. High quality of products and worldwide availability guarantee in a short delivery time. A comprehensive offer of contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM miniature and classic limit switches ranges.
Specifications
Environment
- Ambient Air Temperature For Storage
- -40-70 °C standard environment || -40-70 °C low temperature || 10-120 °C high temperature
- Ambient Air Temperature For Operation
- -25-70 °C standard environment || -40-70 °C low temperature || 10-120 °C high temperature
Environmental Characteristicstandard environment || high temperature || low temperature
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Switch Actuation
- by 30° cam
Positive Openingwith
Specifications
- Series Name
- standard format
- Type Of Approach
- lateral approach
- Associated Head
- ZCKE05
- Product Or Component Type
- limit switch lever
- Device Short Name
- ZCKY
Movement Of Operating Headrotary
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorroller lever spring return metal ball bearing mounted)
Product CompatibilityXCKJ
