Telemecanique Sensors XCKL102 Limit switch, Limit switches XC Standard, XCKL, steel roller plunger, 1NC+1 NO, snap action, Cable gland
- MPN: XCKL102
- PPN: TES-XCKL102
- UNSPSC: 39122213
CAD
$121.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

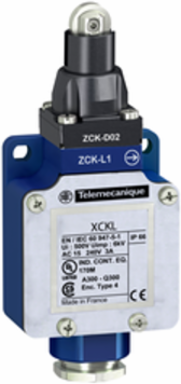

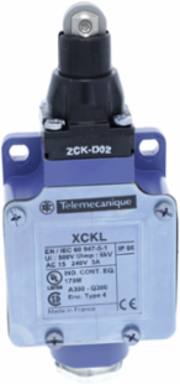

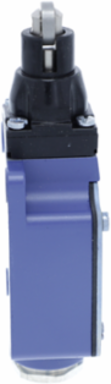

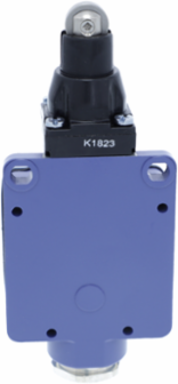

This XCKL classic format limit switch has a steel roller plunger and a Zamak body. This limit switch has a robust Zamak body, a modular design allowing easier maintenance and a classic format. It is IP66 and IK05 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508, BV standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the body
- Cable Entry
- 1 metal cable gland entry 6-13.5 mm
- Material
- metal
- Type Of Approach
- lateral approach, 2 directions
- Contacts Type And Composition
- 1 NC + 1 NO
- Contact Operation
- snap action
- Device Short Name
- XCKL
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return roller plunger metal
Product Or Component Typelimit switch
Head Typeplunger head
Series Namestandard format
Body Typefixed
Body Materialzamak
Number Of Poles2
Complementary
- Height
- 72-72 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Electrical Connection
- screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
- Net Weight
- 0.26 kg
- Switch Actuation
- by 30° cam
- Electrical Durability
- 5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- Mechanical Durability
- 20000000 cycles
- Minimum Force For Tripping
- 12 N
- Width
- 52 mm
- [Ithe] Conventional Enclosed Thermal Current
- 10 A AC
Terminals Description Iso N°1(21-22)NC || (13-14)NO
Minimum Actuation Speed0.01 m/min
Number Of Steps1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Positive Opening Minimum Force36 N
Contacts Insulation FormZb
Maximum Actuation Speed0.5 m/s
Contact Code DesignationA300, AC-15 (Ue = 240 V), Ie = 3 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
Depth30 mm
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3
Environment
- Product Certifications
- CSA || UL
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 50 gn 11 ms EN/IEC 60068-2-27
- Ip Degree Of Protection
- IP66 EN/IEC 60529
- Electrical Shock Protection Class
- class I IEC 61140 || class I NF C 20-030
Ik Degree Of ProtectionIK05 EN 50102
StandardsEN 60204-1 || CSA C22.2 No 14 || EN 60947-5-1 || UL 508 || IEC 60947-5-1 || IEC 60204-1
Vibration Resistance25 gn 10-500 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
