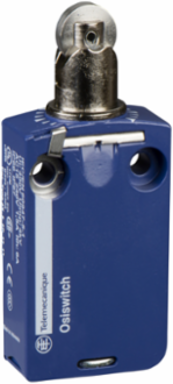

Telemecanique Sensors XCMD2118L2 Limit switch, Limit switches XC Standard, XCMD miniature pre cabled, cable 2 m
- MPN: XCMD2118L2
- PPN: TES-XCMD2118L2
- UNSPSC: 39122213
CAD
$403.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCMD miniature pre cabled, cable 2 m
Documentation & Downloads
Specifications
Key Specifications
- Type Of Approach
- lateral approach, 2 directions
- Contacts Type And Composition
- 1 NC + 1 NO
- Body Type
- fixed
- Contact Operation
- snap action
- Type Of Operator
- spring return roller lever metal
- Body Material
- zamak
- Head Material
- zamak
- Device Short Name
- XCMD
- Head Type
- rotary head
Series Namestandard format
Movement Of Operating Headrotary
Range Of ProductTelemecanique Limit switches XC Standard
Fixing Modeby the body
Sensor Designminiature
Product Or Component Typelimit switch
Materialmetal
Number Of Poles2
Complementary
- Switch Actuation
- by 30° cam
- Height
- 50-50 mm
- Electrical Durability
- 5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Contacts Insulation Form
- Zb
- Mechanical Durability
- 10000000 cycles
- Wire Insulation Material
- PvR
- Contact Code Designation
- B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
- Depth
- 16 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60664 || 4 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 V 3)UL 508 || 400 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14
Short-Circuit Protection6 A cartridge fuse gG
Positive Openingwith
Electrical Connectionremovable cable connector
Cable Length2 m
Cable Composition5 x 0.75 mm²
Width30 mm
Net Weight0.22 kg
Maximum Resistance Across Terminals25 mOhm IEC 60255-7 category 3
Environment
- Product Certifications
- CSA || UL || CCC
- Ambient Air Temperature For Operation
- -25-70 °C
- Overvoltage Category
- class I IEC 61140 || class I NF C 20-030
- Shock Resistance
- 25 gn 18 ms IEC 60068-2-27
- Protective Treatment
- TC
Ik Degree Of ProtectionIK06 EN 62262
Ambient Air Temperature For Storage-40-70 °C
StandardsUL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60204-1
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 || IP68 conforming to IEC 60529
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP080101EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
