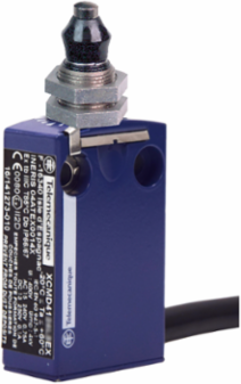

Telemecanique Sensors XCMD41G1L5EX Limit switch, Limit switches XC Standard, XCMD, plunger with elastomer boot, 2NC + 2 NO, ATEX/IECEx

MPN: XCMD41G1L5EX
PPN: TES-XCMD41G1L5EX

$828.27

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch, Limit switches XC Standard, XCMD, plunger with elastomer boot, 2NC + 2 NO, ATEX/IECEx

Documentation & Downloads

Specifications

Key Specifications

Movement Of Operating Head	linear
Electrical Connection	fixed cable
Fixing Mode	by the head
Sensor Design	miniature
Material	metal
Head Type	M16 plunger head
Type Of Approach	vertical approach, 1 direction
Contacts Type And Composition	2 x (1 NC + 1 NO)
Positive Opening	with
Contact Operation	snap action
Minimum Force For Tripping	8.5 N
Number Of Poles	4

Range Of Product	Telemecanique Limit switches XC Standard
Number Of Steps	1
Type Of Operator	spring return plunger metal with elastomer boot
Product Or Component Type	limit switch
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP67 IEC 60529
Switch Actuation	on end
Series Name	standard format
Body Type	fixed
Contacts Insulation Form	Zb
Maximum Actuation Speed	0.5 m/s
Device Short Name	XCMD

Complementary

Height	50-50 mm
Minimum Actuation Speed	0.01 m/min
Marking	II2 D-Ex tb IIIC T85°C Db IP66/67
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 60664 \|\| 4 kV IEC 60947-1
Electrical Durability	5000000 cycles, DC-13, inductive, 24 V, 3 W 3600 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, inductive, 48 V, 2 W 3600 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, inductive, 120 V, 1 W 3600 cyc/mn 0.5 , DC IEC 60947-5-1 appendix C
Mechanical Durability	10000000 cycles
Wire Insulation Material	PvR
Contact Code Designation	R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN 60947-5-1 \|\| R300, DC-13 (Ue = 250 V), Ie = 0.1 A IEC 60947-5-1 appendix A \|\| C300, AC-15 (Ue = 240 V), Ie = 0.75 A EN 60947-5-1 \|\| C300, AC-15 (Ue = 240 V), Ie = 0.75 A IEC 60947-5-1 appendix A
Depth	16 mm
Maximum Resistance Across Terminals	25 MOhm IEC 60255-7 category 3

Short-Circuit Protection	6 A cartridge fuse gG
Cable Length	5 m
Head Material	zamak
[Ui] Rated Insulation Voltage	300 VUL 508 \|\| 400 V 3)IEC 60947-1 \|\| 300 VCSA C22.2 No 14
Positive Opening Minimum Force	42.5 N
Body Material	zamak
Cable Composition	9 x 0.34 mm²
Width	30 mm
[Ithe] Conventional Enclosed Thermal Current	3 A AC

Environment

Product Certifications	INERIS 04ATEX0014X \|\| IEC-Ex INE 17.0020X
Standards	EN/IEC 60079-31 \|\| EN/IEC 60079-0
Shock Resistance	25 gn 18 ms IEC 60068-2-27
Directives	2014/34/EU - ATEX directive
Protective Treatment	TC

Ambient Air Temperature For Operation	-20-60 °C
Dust Zone	zone 21 - 22
Vibration Resistance	5 gn 10-500 Hz)IEC 60068-2-6
Electrical Shock Protection Class	class I IEC 61140 \|\| class I NF C 20-030

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110612EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
