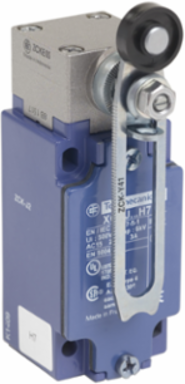

Telemecanique Sensors XCKJ20511H7 Limit switch, XC Standard, 240 VAC 10 amp XCKJ +options
- MPN: XCKJ20511H7
- PPN: TES-XCKJ20511H7
- UNSPSC: 39122213
CAD
$239.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, XC Standard, 240 VAC 10 amp XCKJ +options
Documentation & Downloads
Specifications
Key Specifications
- Type Of Approach
- lateral approach, 1 or 2 programmable direction
- Contacts Type And Composition
- 1 C/O
- Body Type
- fixed
- Contact Operation
- snap action, simultaneous
- Type Of Operator
- spring return without operating lever
- Cable Entry
- 1 entry tapped for 1/2" NPT cable gland
- Head Material
- zamak
- Device Short Name
- XCKJ
- Head Type
- rotary head
Series Namestandard format
Movement Of Operating Headrotary
Range Of ProductTelemecanique Limit switches XC Standard
Fixing Modeby the body
Body Materialzamak
Product Or Component Typelimit switch
Materialmetal
Number Of Poles2
Complementary
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
- Terminals Description Iso N°1
- (13-14)NO || (21-22)NC
- Electrical Durability
- 5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Contacts Insulation Form
- Zb
- Electrical Connection
- screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
- Mechanical Durability
- 30000000 cycles
- Width
- 40 mm
- Minimum Torque For Tripping
- 0.25 N.m
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3
Height77-77 mm
Short-Circuit Protection10 A cartridge fuse gG
Positive Openingwithout
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Number Of Steps1
[Ithe] Conventional Enclosed Thermal Current10 A
Depth44 mm
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
Environment
- Product Certifications
- UL || CSA || CCC
- Ambient Air Temperature For Operation
- -25-70 °C
- Overvoltage Category
- class I IEC 61140 || class I NF C 20-030
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Protective Treatment
- TH
Ik Degree Of ProtectionIK07 EN 50102
Ambient Air Temperature For Storage-40-70 °C
StandardsEN 60947-5-1 || IEC 60204-1 || EN 60204-1 || IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || CENELEC EN 50041
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 conforming to IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach RegulationReference contains Substances of Very High Concern above the threshold
