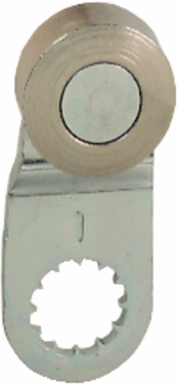

Telemecanique Sensors ZCY19 Limit switch lever, Limit switches XC Standard, ZCY, steel roller
Telemecanique Sensors ZCY19 Limit switch lever, Limit switches XC Standard, ZCY, steel roller
- MPN: ZCY19
- PPN: TES-ZCY19
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$8.77/ EA
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch lever provides switch actuation by 30° cam with positive opening operation. The steel spring return roller lever supports lateral approach and switch actuation by 30° cam. The movement of operating head is rotary. The rotary head switch lever is made of steel. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKT, XCMD, XCKD and XCKP series limit switches. Its associated heads are ZCE01 and ZCE05. Limit switches for contact sensing of inflexible objects. High quality of products and worldwide availability guarantee in a short delivery time. A comprehensive offer of contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM miniature and classic limit switches ranges.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Characteristic
- standard environment
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110612EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI110612EN
Complementary
- Switch Actuation
- by 30° cam
Positive Openingwith
Specifications
- Movement Of Operating Head
- rotary
- Associated Head
- ZCE01 || ZCE05
- Product Or Component Type
- limit switch lever
- Type Of Approach
- lateral approach
- Product Compatibility
- XCKT || XCMD || XCKD || XCKP
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorroller lever spring return metal
Series Namestandard format
Tracks20/36 mm XCMD || 24/40 mm XCKD || 24/40 mm XCKP || 24/40 mm XCKT
Device Short NameZCY
