Telemecanique Sensors ZCY17 Limit switch lever, Limit switches XC Standard, ZCY, steel ball bearing mounted roller
Telemecanique Sensors ZCY17 Limit switch lever, Limit switches XC Standard, ZCY, steel ball bearing mounted roller
- MPN: ZCY17
- UPC: 338911019188
- PPN: TES-ZCY17
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$41.27/ EA
Description

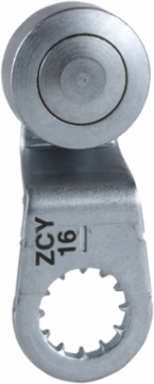

This product is part of the XC Standard range, an offer of limit switches. This limit switch lever has a spring return metal roller (ball bearing mounted) operator and provides a lateral approach without positive opening operation. The switch lever with a rotary movement and switching actuation of 30° cam. It is compatible with XCMD, XCKD, XCKP and XCKT limit switches. The associated heads are ZCE05 and ZCE01. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
Specifications
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ambient Air Temperature For Operation
- -25-70 °C
Environmental Characteristicstandard environment
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI110612EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP110612EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Switch Actuation
- by 30° cam
Positive Openingwith
Specifications
- Series Name
- standard format
- Type Of Approach
- lateral approach
- Tracks
- 24/31 mm XCMD || 29/36 mm XCKD || 29/36 mm XCKP || 29/36 mm XCKT
- Type Of Operator
- roller lever spring return metal ball bearing mounted)
- Product Compatibility
- XCMD || XCKD || XCKP || XCKT
Movement Of Operating Headrotary
Range Of ProductTelemecanique Limit switches XC Standard
Associated HeadZCE05 || ZCE01
Product Or Component Typelimit switch lever
Device Short NameZCY
