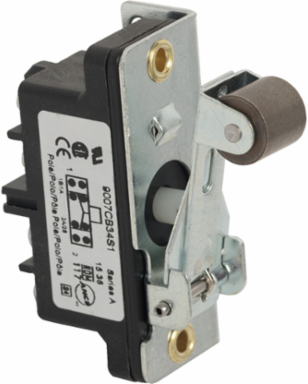

Telemecanique Sensors 9007CB34 Snap limit switch, 9007, 600 V 10amp cb +options

MPN: 9007CB34
UPC: 785901157908
PPN: TES-9007CB34

$158.95

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Snap limit switch, 9007, 600 V 10amp cb +options

Documentation & Downloads

Specifications

Key Specifications

Series Name	heavy duty
Range Of Product	9007
Device Short Name	9007AO/CO

Body Type	fixed
Product Or Component Type	snap limit switch

Complementary

Switch Actuation	by 30° cam
Height	2.5 in
Terminals Description Iso N°1	(3-4)NO \|\| (7-8)NO \|\| (1-2)NC \|\| (5-6)NC
Electrical Connection	1-2 6 binder head screw terminals AWG 22...AWG 14)
Number Of Steps	1
Operator Material	cast zinc
Fixing Mode	by the body
Maximum Force For Tripping	0.5 lbf
Operator Profile	plunger head
[Ithe] Conventional Enclosed Thermal Current	10 A
Contacts Type And Composition	2(NC-NO) DPDT-DB
Width	0.95 in
Material	metal
Number Of Poles	2

Type Of Approach	traverse approach, 2 directions
Movement Of Operating Head	linear
[Ui] Rated Insulation Voltage	600 V 3)UL 508 contact block \|\| 600 VCSA C22.2 No 14 contact block
Positive Opening	without
Contact Operation	snap action
[Ie] Rated Operational Current	0.6 A 600 V AC, B600 NEMA rating designation \|\| 0.75 A 480 V AC, B600 NEMA rating designation \|\| 1.5 A 240 V AC, B600 NEMA rating designation \|\| 3 A 120 V AC, B600 NEMA rating designation \|\| 0.1 A 250 V DC \|\| 0.2 A 125 V DC
Contacts Material	silver contacts
Type Of Operator	spring return roller lever plunger metal RH bracket + 0.47" roller
Body Material	cast zinc
Contact Form	Form ZZ
Minimum Force For Tripping	0.5 lbf
Depth	2.54 in
Net Weight	1.5 lb(US)
