Telemecanique Sensors XCKJ50511 Limit switch, XC Standard, XCKJ, thermoplastic roller lever, 1NC+1 NO, slow break, Pg13
Telemecanique Sensors XCKJ50511 Limit switch, XC Standard, XCKJ, thermoplastic roller lever, 1NC+1 NO, slow break, Pg13
- MPN: XCKJ50511
- PPN: TES-XCKJ50511
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$173.15/ EA
Description

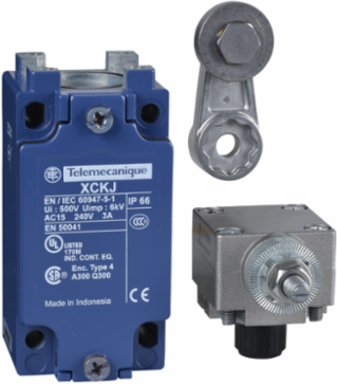

This product is part of the XC Standard range, an offer of limit switches. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 NO and 1 NC form Zb contacts. It provides switch actuation of 30° cam. The limit switch has a spring return thermoplastic roller lever and supports the lateral approach. The movement of operating head is rotary. It is a limit switch with a conventional enclosed thermal current of 10A and rated operating current of 3A at 240V AC and 0.27A at 250V DC. It is furnished with screw clamp terminals for electrical connection. It is an IP66 and IK07 rated product. This rotary head limit switch has a fixed body, made of Zamak. Its dimensions are 40mm (width) x 44mm (depth) x 77mm (height). It weighs 0.48kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. This product is certified by CCC, CSA and UL. It meets EN 60204-1, IEC 60947-5-1, CSA C22.2 No 14, CENELEC EN 50041, IEC 60204-1, EN 60947-5-1 and UL 508 standards. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
Specifications
Environment
- Product Certifications
- CSA || UL || CCC
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529
- Overvoltage Category
- class I IEC 61140 || class I NF C 20-030
Ik Degree Of ProtectionIK07 EN 50102
StandardsCSA C22.2 No 14 || EN 60204-1 || EN 60947-5-1 || CENELEC EN 50041 || UL 508 || IEC 60204-1 || IEC 60947-5-1
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 77-77 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Electrical Connection
- screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
- Positive Opening
- with
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- Mechanical Durability
- 30000000 cycles
- Width
- 40 mm
- Minimum Torque For Tripping
- 0.25 N.m
Terminals Description Iso N°1(21-22)NC || (13-14)NO
Minimum Actuation Speed6 m/min
Number Of Steps1
Net Weight0.48 kg
Switch Actuationby 30° cam
Electrical Durability5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Contacts Insulation FormZb
Positive Opening Minimum Torque0.5 N.m
Maximum Actuation Speed1.5 m/s
Depth44 mm
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3
Specifications
- Movement Of Operating Head
- rotary
- Fixing Mode
- by the body
- Sensor Design
- form A CENELEC EN 50041
- Product Or Component Type
- limit switch
- Material
- metal
- Type Of Approach
- lateral approach, 1 or 2 programmable direction
- Contacts Type And Composition
- 1 NC + 1 NO
- Contact Operation
- slow-break, break before make
- Device Short Name
- XCKJ
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return roller lever thermoplastic
Cable Entry1 entry tapped for Pg 13.5 cable gland 9-12 mm
Head Materialzamak
Head Typerotary head
Series Namestandard format
Body Typefixed
Body Materialzamak
Number Of Poles2
