Telemecanique Sensors XCKL106 Limit switch, Limit switches XC Standard, XCKL, cats whisker, 1NC+1 NO, snap action, Cable gland

MPN: XCKL106
PPN: TES-XCKL106
UNSPSC: 39122213

$129.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

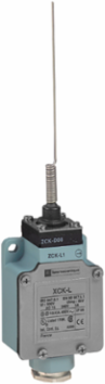

This XCKL classic format limit switch has a "cat's whiskers" and a Zamak body. This limit switch has a robust Zamak body, a modular design allowing easier maintenance and a classic format. It is IP66 and IK05 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508, BV standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.

Documentation & Downloads

Specifications

Key Specifications

Movement Of Operating Head	multi-directional
Fixing Mode	by the body
Cable Entry	1 metal cable gland entry 6-13.5 mm
Material	metal
Type Of Approach	multi-directional approach
Contacts Type And Composition	1 NC + 1 NO
Contact Operation	snap action
Device Short Name	XCKL

Range Of Product	Telemecanique Limit switches XC Standard
Type Of Operator	spring return cat''s whisker
Product Or Component Type	limit switch
Head Type	multi-directional head
Series Name	standard format
Body Type	fixed
Body Material	zamak
Number Of Poles	2

Complementary

Height	72-72 mm
Short-Circuit Protection	10 A cartridge fuse gG
Electrical Connection	screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Net Weight	0.255 kg
Switch Actuation	by any moving part
Electrical Durability	5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, inductive, 24 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, inductive, 48 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Contacts Insulation Form	Zb
Maximum Actuation Speed	1 m/s
Width	52 mm
Minimum Torque For Tripping	0.13 N.m
Maximum Resistance Across Terminals	25 MOhm IEC 60255-7 category 3

Terminals Description Iso N°1	(21-22)NC \|\| (13-14)NO
Minimum Actuation Speed	0.01 m/min
Number Of Steps	1
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60664 \|\| 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage	300 VUL 508 \|\| 500 V 3)IEC 60947-1 \|\| 300 VCSA C22.2 No 14
Positive Opening	without
Mechanical Durability	10000000 cycles
Contact Code Designation	A300, AC-15 (Ue = 240 V), Ie = 3 A EN/IEC 60947-5-1 appendix A \|\| Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
Depth	30 mm
[Ithe] Conventional Enclosed Thermal Current	10 A AC

Environment

Product Certifications	CSA \|\| UL
Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	50 gn 11 ms EN/IEC 60068-2-27
Ip Degree Of Protection	IP66 EN/IEC 60529
Electrical Shock Protection Class	class I IEC 61140 \|\| class I NF C 20-030

Ik Degree Of Protection	IK05 EN 50102
Standards	IEC 60204-1 \|\| UL 508 \|\| IEC 60947-5-1 \|\| EN 60947-5-1 \|\| CSA C22.2 No 14 \|\| EN 60204-1
Vibration Resistance	25 gn 10-500 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C
Protective Treatment	TC

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110614EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
