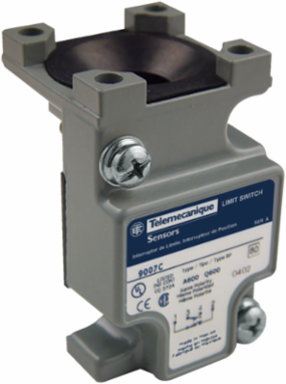

Telemecanique Sensors 9007CO52 Limit switch plug in unit, 9007, 600 V 10 A c
Telemecanique Sensors 9007CO52 Limit switch plug in unit, 9007, 600 V 10 A c
- MPN: 9007CO52
- UPC: 785901786498
- PPN: TES-9007CO52
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$147.13/ EA
Description
This product is part of the Nema Limit Switches range. This limit switch plug-in unit has 1 NC and 1 NO, single pole double throw, double break, form Z, snap action contacts. It has 1 NC and 1 NO, single pole double throw, double break, form Z, snap action contacts. It is a limit switch body with a rated voltage of 600V AC and rated operating current of 10A. It is an IP67 and NEMA 1/2/4/6/6P/12/13 rated product. Its dimensions are 39.37mm (width) x 45.47mm (depth) x 57.4mm (height). It weighs 0.57kg. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Specifications
Environment
- Ambient Air Temperature For Storage
- -20-185 °F
- Electrical Shock Protection Class
- class 0 IEC 61140
- Vibration Resistance
- 25 gn 10-150 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP67 IEC 60529
Nema Degree Of ProtectionNEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
Shock Resistance60 gn 9 ms IEC 60068-2-27
Protective Treatmentepoxy powder coat
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111160EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Height
- 2.26-2.26 in
- [Ui] Rated Insulation Voltage
- 600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14
- [Ie] Rated Operational Current
- 1.2 A 600 V AC, A600 NEMA rating designation || 1.5 A 480 V AC, A600 NEMA rating designation || 3 A 240 V AC, A600 NEMA rating designation || 6 A 120 V AC, A600 NEMA rating designation || 0.1 A 600 V DC, Q600 NEMA rating designation || 0.27 A 250 V AC, Q600 NEMA rating designation || 0.55 A 125 V DC, Q600 NEMA rating designation
- Mechanical Durability
- 10000000 cycles
- Body Material
- zinc
- Contact Form
- Form Z
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
- Associated Connection Component
- 9007CT52
- Electrical Durability
- 1000000 cycles
Terminals Description Iso N°1(3-4)NO || (1-2)NC
Short-Circuit Protection10 A CC non-time delay
Contacts Materialsilver contacts
Associated Head9007C
[Ithe] Conventional Enclosed Thermal Current10 A
Switch FunctionSPDT-DB
Width1.55 in
Depth1.79 in
Net Weight1.25 lb(US)
Specifications
- Series Name
- heavy duty
- Sale Per Indivisible Quantity
- 1
- Range Of Product
- 9007
- Positive Opening
- without
- Contact Operation
- snap action
- Product Or Component Type
- limit switch plug-in unit
- Local Display
- without
- Number Of Poles
- 1
Contacts Type And CompositionNC-NO
Body Typecompact plug-in
Environmental Characteristicstandard environment
Number Of Steps1
Ambient Air Temperature For Operation-20-185 °F standard environment
Product Compatibility9007C
Device Short Name9007C
