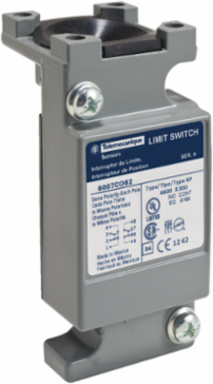

Telemecanique Sensors 9007CO68 Limit switch plug in unit, 9007, 600 V 10amp c
- MPN: 9007CO68
- UPC: 785901812050
- PPN: TES-9007CO68
CAD
$217.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Limit switch plug in unit, 9007, 600 V 10amp c
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Sale Per Indivisible Quantity
- 1
- Range Of Product
- 9007
- Positive Opening
- without
- Contact Operation
- snap action
- Product Or Component Type
- limit switch plug-in unit
- Local Display
- without
- Number Of Poles
- 2
Contacts Type And Composition2(NC-NO)
Body Typestandard plug-in
Environmental Characteristicstandard environment
Number Of Steps2
Ambient Air Temperature For Operation-20-185 °F standard environment
Product Compatibility9007C
Device Short Name9007C
Complementary
- Function Available
- neutral position
- Terminals Description Iso N°1
- (1-2)NC || (3-4)NO || (5-6)NC || (7-8)NO
- Short-Circuit Protection
- 10 A CC non-time delay
- Contacts Material
- silver contacts
- Associated Head
- 9007C
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Switch Function
- 2 SPDT-DB
- Width
- 1.55 in
- Depth
- 1.79 in
- Net Weight
- 1.25 lb(US)
Height3.14-3.14 in
[Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14
[Ie] Rated Operational Current1.2 A 600 V AC, A600 NEMA rating designation || 1.5 A 480 V AC, A600 NEMA rating designation || 3 A 240 V AC, A600 NEMA rating designation || 6 A 120 V AC, A600 NEMA rating designation || 0.11 A 250 V DC, R300 NEMA rating designation || 0.55 A 125 V DC, R300 NEMA rating designation
Mechanical Durability10000000 cycles
Body Materialzinc
Contact FormForm Z
[Uimp] Rated Impulse Withstand Voltage2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
Associated Connection Component9007CT62
Electrical Durability1000000 cycles
Environment
- Ambient Air Temperature For Storage
- -20-185 °F
- Electrical Shock Protection Class
- class 0 IEC 61140
- Vibration Resistance
- 25 gn 10-150 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP67 IEC 60529
Nema Degree Of ProtectionNEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
Shock Resistance60 gn 9 ms IEC 60068-2-27
Protective Treatmentepoxy powder coat
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111160EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
