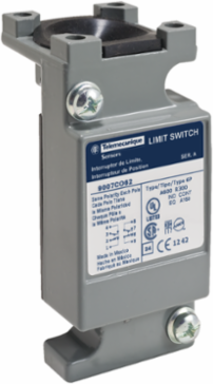

Telemecanique Sensors 9007CO62 Limit switch plug-in unit 9007C, 600 V, 10 A, C, switch function DPDT-DB

MPN: 9007CO62
UPC: 785901500858
PPN: TES-9007CO62

$201.63

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch plug-in unit 9007C, 600 V, 10 A, C, switch function DPDT-DB

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Body material	Zinc
Contact form	Form ZZ
Terminals description ISO n°1	(1-2)NC (3-4)NO (5-6)NC (7-8)NO

Switch function	DPDT-DB
Contacts material	Silver contacts

Main

Range of product	9007
Product or component type	Limit switch plug-in unit
Local display	Without
Contact operation	Snap action
Positive opening	Without

Series name	Heavy duty
Body type	Standard plug-in
Contacts type and composition	2(NC-NO)
Environmental characteristic	Standard environment

Environment

Shock resistance	60 gn for 9 ms conforming to IEC 60068-2-27
NEMA degree of protection	NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
Electrical shock protection class	Class 0 conforming to IEC 61140

Vibration resistance	25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
IP degree of protection	IP67 conforming to IEC 60529
Protective treatment	Epoxy powder coat
