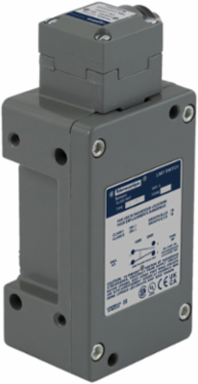

Telemecanique Sensors 9007CR53GD Limit switch, 9007, 9007CR 1 NO/NC, side push rod plunger, adjustable
- MPN: 9007CR53GD
- UPC: 785901857358
- PPN: TES-9007CR53GD
- UNSPSC: 39122213
CAD
$533.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, 9007, 9007CR 1 NO/NC, side push rod plunger, adjustable
Documentation & Downloads
Specifications
Key Specifications
- Switch Actuation
- on end
- Series Name
- heavy duty
- Movement Of Operating Head
- linear
- Body Type
- fixed
- Level Or Class
- Class I Division 1 Groups B/C/D || Class II Division 1 Groups E/F/G
- Electrical Connection
- screw-clamp terminals AWG 22...AWG 12), 1-2
- Product Specific Application
- hazardous location box
- Cable Entry
- 1 entry for 1/2" - 14 NPT ANSI B1.20.1
- Material
- metal
- Type Of Operator
- stainless steel spring return side plunger adjustable)
- Head Type
- plunger head
Type Of Approachlateral approach, 1 direction
Contacts Type And CompositionNC-NO
Sale Per Indivisible Quantity1
Range Of Product9007
Positive Openingwithout
Contact Operationsnap action
Fixing Modeby the body
Product Or Component Typelimit switch
Device Short Name9007CR
Number Of Poles1
Complementary
- Height
- 6.1-6.1 in
- [Ui] Rated Insulation Voltage
- 600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block
- [Ie] Rated Operational Current
- 1.2 A 600 V AC, A600 NEMA || 1.5 A 480 V AC, A600 NEMA || 3 A 240 V AC, A600 NEMA || 6 A 120 V AC, A600 NEMA || 0.1 A 600 V DC, Q600 NEMA || 0.27 A 250 V AC, Q600 NEMA || 0.55 A 125 V DC, Q600 NEMA
- Mechanical Durability
- 10000000 cycles
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Switch Function
- SPDT-DB
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
- Depth
- 3.03 in
- Electrical Durability
- 1000000 cycles
- Repeat Accuracy
- +/- 0.001 in linear travel of cam
Terminals Description Iso N°1(1-2)NC || (3-4)NO
Short-Circuit Protection10 A CC non-time delay
Contacts Materialsilver contacts
Body Materialaluminium
Contact FormForm Z
Minimum Force For Tripping4 lbf
Width2.72 in
Head Materialzinc
Net Weight2.5 lb(US)
Local Signallingwithout
Environment
- Ambient Air Temperature For Storage
- -20-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
- Electrical Shock Protection Class
- class 0 IEC 61140
- Vibration Resistance
- 25 gn 10-150 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP67 IEC 60529
Environmental Characteristicstandard environment
Ambient Air Temperature For Operation-20-185 °F hazardous location
Shock Resistance60 gn 9 ms IEC 60068-2-27
Protective Treatmentepoxy powder coat
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
