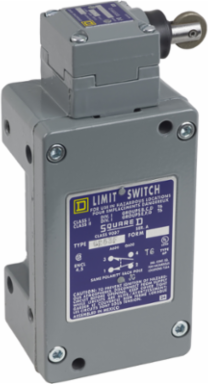

Telemecanique Sensors 9007CR53F NEMA limit switch, 9007C, heavy duty, standard, steel spring return side roller plunger, 10A, 600V, 1NO/1NC, NEMA 7/9
- MPN: 9007CR53F
- UPC: 785901960782
- PPN: TES-9007CR53F
- UNSPSC: 39122213
CAD
$551.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These industrial heavy duty limit switches are applied in almost any environments. This side roller plunger limit switch has a body and receptacle which is good for hazardous locations. Limit switch has one normally open and one normally closed contact. The snap action contacts will change state as the side roller plunger comes in contact with a cam that forces the plunger to move. Contacts have an A600 and Q600 inductive ratings and 10A resistive rating. The side roller plunger head requires 3 lb. of force to operate. This limit switch is 6.10 inches tall, 2.72 inches wide and 2.95 inches deep. This limit switch is UL Listed for hazardous locations, Division I, Class I, Groups B, C, D and Class II, Groups E, F, G. Switch has a 0.50 inch conduit entry with 14 NPT. Limit switch is UL listed and CSA certified. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug-in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Electrical Connection
- screw-clamp terminals AWG 22...AWG 12), 1-2
- Cable Entry
- 1 entry for 1/2" - 14 NPT ANSI B1.20.1
- Material
- metal
- Head Type
- plunger head
- Type Of Approach
- vertical approach, 2 directions
- Contacts Type And Composition
- NC-NO
- Body Type
- fixed
- Positive Opening
- without
- Product Specific Application
- hazardous location box
- Number Of Poles
- 1
Range Of Product9007
Fixing Modeby the body
Product Or Component Typelimit switch
Type Of Operatorsteel spring return side roller plunger with vertical roller vertical convertible to horizontal)
Switch Actuationby 30° cam
Series Nameheavy duty
Sale Per Indivisible Quantity1
Level Or ClassClass II Division 1 Groups E/F/G || Class I Division 1 Groups B/C/D
Contact Operationsnap action
Device Short Name9007CR
Complementary
- Height
- 6.1-6.1 in
- Contacts Material
- silver contacts
- Contact Form
- Form Z
- Net Weight
- 2.5 lb(US)
- [Ui] Rated Insulation Voltage
- 600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block
- [Ie] Rated Operational Current
- 1.2 A 600 V AC, A600 NEMA || 1.5 A 480 V AC, A600 NEMA || 3 A 240 V AC, A600 NEMA || 6 A 120 V AC, A600 NEMA || 0.1 A 600 V DC, Q600 NEMA || 0.27 A 250 V AC, Q600 NEMA || 0.55 A 125 V DC, Q600 NEMA
- Body Material
- aluminium
- Minimum Force For Tripping
- 4 lbf
- Width
- 2.72 in
- Electrical Durability
- 1000000 cycles
Terminals Description Iso N°1(3-4)NO || (1-2)NC
[Ithe] Conventional Enclosed Thermal Current10 A
Head Materialzinc
Local Signallingwithout
Short-Circuit Protection10 A CC non-time delay
Mechanical Durability10000000 cycles
Switch FunctionSPDT-DB
[Uimp] Rated Impulse Withstand Voltage2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
Depth2.95 in
Repeat Accuracy+/- 0.001 in linear travel of cam
Environment
- Ambient Air Temperature For Operation
- -20-185 °F hazardous location
- Vibration Resistance
- 25 gn 10-150 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -20-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
- Protective Treatment
- epoxy powder coat
Shock Resistance60 gn 9 ms IEC 60068-2-27
Ip Degree Of ProtectionIP67 conforming to IEC 60529
Environmental Characteristicstandard environment
Electrical Shock Protection Classclass 0 IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
