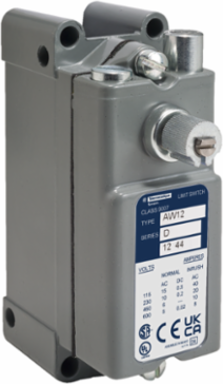

Telemecanique Sensors 9007AW19 Limit switch, 9007, 600 VAC 10amp aw +options
- MPN: 9007AW19
- UPC: 785901809425
- PPN: TES-9007AW19
- UNSPSC: 39122213
CAD
$424.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, 9007, 600 VAC 10amp aw +options
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Body Type
- plug-in
- Product Or Component Type
- limit switch
Range Of Product9007
Product Specific Applicationprecision
Device Short Name9007AW
Complementary
- Switch Actuation
- from left convertible to right || CCW convertible to CW
- Type Of Approach
- lateral approach, 1 direction programmable
- Movement Of Operating Head
- rotary
- Terminals Description Iso N°1
- (1-2)NC || (5-6)NC
- Positive Opening
- without
- Tripping Angle
- 5 °
- Contact Operation
- snap action
- [Ie] Rated Operational Current
- 0.6 A 600 V AC, B600 NEMA rating designation || 0.75 A 480 V AC, B600 NEMA rating designation || 1.5 A 240 V AC, B600 NEMA rating designation || 3 A 120 V AC, B600 NEMA rating designation || 0.1 A 600 V DC, Q600 NEMA rating designation || 0.3 A 250 V DC, Q600 NEMA rating designation || 1 A 125 V DC, Q600 NEMA rating designation
- Contacts Material
- silver contacts
- Operator Profile
- rotary head
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Contact Form
- Form AA || Form BB
- Width
- 3 in
- Minimum Torque For Tripping
- 2.75 lbf.in
- Net Weight
- 1.25 lb(US)
- Number Of Poles
- 2
Maximum Displacement Angle30 °
Height3.68-3.68 in
Mounting Modesurface mounting
[Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block
Electrical Connection1-2 screw-clamp terminals AWG 22...AWG 12)
Number Of Steps1
Operator Materialcast zinc
Fixing Modeby the body
Maximum Actuation Speed130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only
Body Materialcast zinc
Cable Entry1 entry for 1/2" - 14 NPT ANSI B1.20.1
Contacts Type And Composition2 NC DPST-NC-DB || 2 NO DPST-NO-DB
Depth1.44 in
Materialmetal
Type Of Operatorspring return without operating lever cast zinc
Repeat Accuracy+/- 0.002 in linear travel of cam on 1.38 in long lever arm
Environment
- Ambient Air Temperature For Operation
- -65-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
- Ip Degree Of Protection
- IP65 IEC 60529
Ambient Air Temperature For Storage-65-185 °F
Protective Treatmentepoxy powder coat
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
