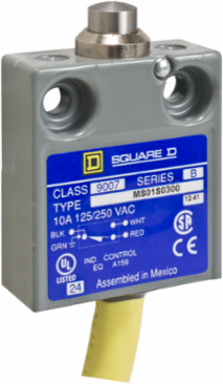

Telemecanique Sensors 9007MS01S0200 Limit switch, 9007, 240 VAC 10amp ms +options

This product is part of the Nema Limit Switches range. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 1 NC and 1 NO, single pole double throw, form C, snap action contacts. It provides switch actuation on one end. The limit switch has a spring return stainless steel plunger, supports vertical approach in 1 direction. The movement of operating head is linear. It is a limit switch with a rated voltage of 240V AC and rated operating current of 10A. It is furnished with pre-wired cable (bottom) for electrical connection. It is an IP67 and NEMA 1/2/4/6/6P rated product. This linear head limit switch has a fixed body, made of cast zinc. Its dimensions are 39.62mm (width) x 15.75mm (depth) x 44.45mm (height). It weighs 0.54kg. This product is certified by CE, UL Listed and CSA. It meets E78403 and LR 25490 Class 32 11 03 standards. The 9007MS/ML heavy duty metal miniature enclosed switches with a 39mm metal body, potted and pre-wired with cable and connector options available. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
