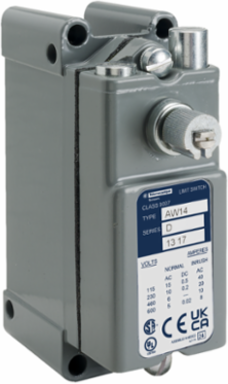

Telemecanique Sensors 9007AW14 Limit switch, 9007AW, heavy duty industrial, precision, 15A at 120VAC, 1NO/1NC, lever arm, nonplug in, NEMA 4, 12, 13

9007AW precision heavy duty limit switches are for applications that require better precision of operation. This limit switch has a rotary lever arm head. Limit switches are factory set to operate in the counterclockwise direction. It can be converted to work in the opposite direction in the field. Limit switch has a one normally open and one normally closed snap action contact. Contacts have an A600 inductive rating and 15A resistive rating. They also have 15A at 125VAC, 10A at 240VAC, 6A at 480VAC and 5A at 600VAC ratings. They also have 0.5A at 125VDC, 0.2A at 250VDC and 0.02A at 600VDC ratings. Limit switch is 3.88 inches tall, 1.44 inches width and 3.00 inches deep Limit switch is NEMA 1, 2, 4, 12 and 13 rated. It is also IP65 rated. Limit switch is supplied with a 0.50 inch conduit entry with 14 NPT. Limit switch is UL Listed and CSA certified. It supports deep box surface mounting. The 9007 AW heavy duty metal industrial precision oil tight enclosed switches with unique features, micrometer adjustable and low temperature operation. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
